| Product Name: | Diffusion Bonded Crystal | Material: | Nd:YAG+Cr:YAG |
|---|---|---|---|
| Growth Method: | Czochralski | Crystal Structure: | Cubic |
| Tolerance: | ±0.1mm | Wavefront Distortion: | λ/8 @633nm |
| Flatness: | λ/10 @633nm | Surface Quality: | 10/5 |
| Clear Aperture: | ＞90% | Coating: | Upon Customer Requirements |
| High Light: | Laser Diffusion Bonded Crystal,ROHS Diffusion Bonded Crystal,Nd Cr YAG Crystal |
||

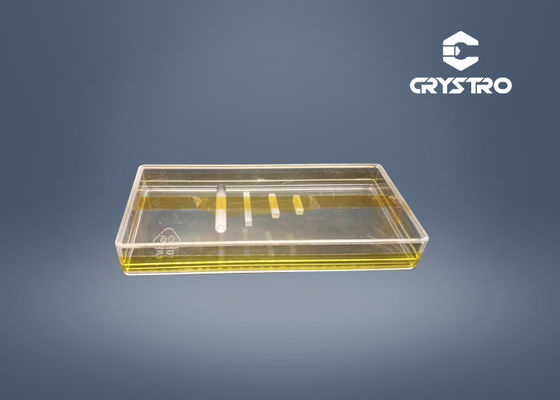

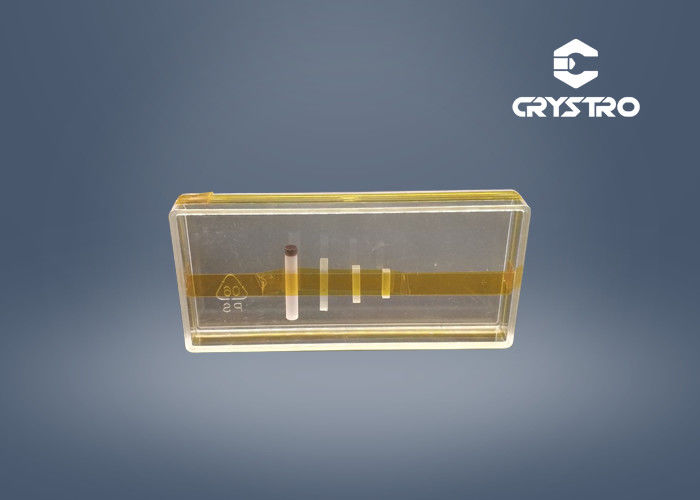

Diffusion Bonded Crystals are crystals consisting of two, three, or more parts with different doping levels or different dopants.
Crystal bonding is a kind of composite technology of laser crystal. Because most optical crystals have a high melting point, it is usually necessary to promote the diffusion and fusion of molecules on the surface of two crystals through precise optical processing by high-temperature heat treatment, and finally form a stable chemical bond to achieve the real integration. Therefore, crystal bonding technology is also called diffusion bonding technology (or thermal bonding technology).
| Material | Doping Concentration | Aperture (mm) | Length (mm) |
| Nd: YAG+Cr4+:YAG | 0.1-3%/0.6-7.0 | 2×2-20×20 | 0.5-200 |
| YAG+Nd: YAG | 0.1-3% | 2×2-20×20 | 0.5-200 |
| YAG+Nd: YAG+YAG | 0.1-3% | 2×2-20×20 | 0.5-200 |
| YAG+Nd: YAG+Cr4+:YAG | 0.1-3%/0.6-7.0 | 2×2-20×20 | 0.5-200 |
| YVO4+Nd: YVO4 | 0.1-3% | 2×2-20×20 | 0.5-200 |
| YVO4+Nd: YVO4+YVO4 | 0.1-3% | 2×2-20×20 | 0.5-200 |
| YVO4+Nd: YVO4+YVO4 | 0.1-3% | Dia2-15 | 0.5-200 |
| Wavefront Distortion | λ/8 wave at 633nm |
| Diameter Tolerance | ±0.1mm |
| Orientation | ±0.5° |
| Chamfer | 0.10mm@45º |
| Flatness | λ/10 wave at 633nm |
| Parallelism | < 10 " |
| Surface Quality | 10/5 Scratch/Dig |
| Clear Aperture | >90% |
