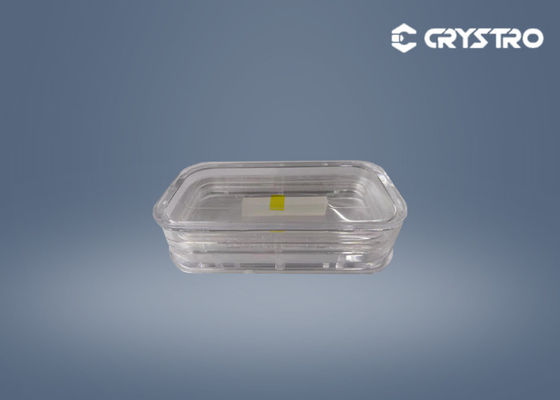

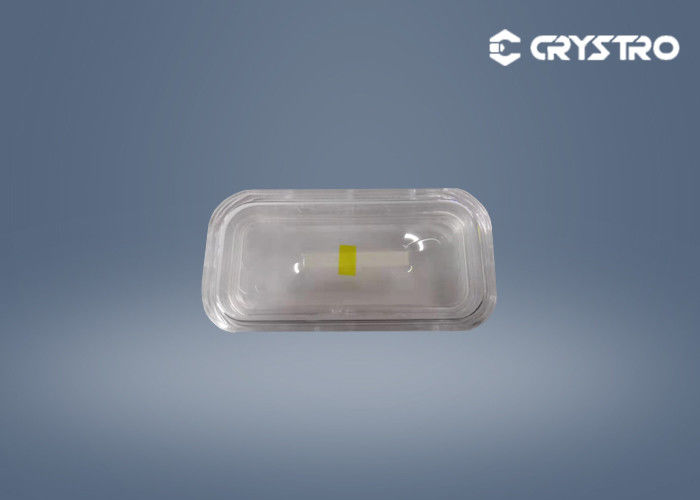

Birefringent Undoped Yttrium Vanadate YVO4 Crystal Excellent Light Transmission

Birefringent Undoped Yttrium Vanadate YVO4 Crystal Excellent Light Transmission
Birefringent Undoped Yttrium Vanadate YVO4 Crystal Excellent Light Transmission Birefringent Undoped Yttrium Vanadate YVO4 Crystal Excellent Light Transmission

Large Image :  Birefringent Undoped Yttrium Vanadate YVO4 Crystal Excellent Light Transmission

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ROHS
Model Number: 1YV4*6*30.8-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detailed Product Description
Product Name: YVO4 Crystal Crystal Structure: Zircon Tetragonal
Density: 4.22g/cm3 Mohs Hardness: 5
Hygroscopic: Non-hygroscopic Transparency Range: 400-5000 Nm
Lattice Constants: A=b=7.12Å; C=6.29 Å Thermal Expansion Coefficiet: αa=4.43x10-6/K;αc=11.37x10-6/K
High Light:

Undoped YVO4 Crystal

,

Birefringent YVO4 Crystal

,

Undoped Yttrium Vanadate


Birefringent Crystals Undoped Yttrium Vanadate YVO4 Crystal



1.Introduction:

Undoped YVO4 crystal is an excellent birefringent optical crystal newly developed in recent years. It has good light transmission in a wide range of visible and near-infrared. Compared with other important birefringent crystals, YVO4 crystals are harder than CaCO3 single crystals, have better mechanical processing properties, and can be grown artificially; YVO4 crystals are also easier to grow large-high-quality crystals than TiO2 single crystal, and the price is much lower than TiO2.

These excellent characteristics make YVO4 crystal quickly become a new type of birefringent optical material, which is widely used in the optoelectronic industry. In optical fiber communication equipment, a large number of various light splitting and polarization components made of pure YVO4 crystals, such as optical isolators, circulators, optical beam splitters, and Glan series polarizers, are required. The combination of YVO4 crystals and rutile crystals can also obtain an ideal temperature compensation effect, which greatly improves the temperature stability of the optical communication system.





2.Basic Properties of YVO4 crystal

Transparency Range 400-5000nm
Crystal Symmetry Zircon Tetragonal, space group D4h
Crystal Cell a=b=7.12Å,c=6.29Å
Density 4.22g/cm3
Mohs Hardness 5,glass-like
Hygroscopic Susceptibility Non-hygroscopic
Thermal Expansion Coefficient αa = 4.43×10-6/K;αc = 11.37 ×10-6/K
Thermal Conductivity Coefficient //C: 5.23 W/m/K; ⊥C: 5.10 W/m/K
Crystal Class Positive uniaxial with no=na=nb, ne=nc
Thermal Optical Coefficient dna/dT = 8.5×10-6/K;dnc/dT = 3.0×10-6/K
Refractive Indices, Birefringence
(Δn = ne- no)
and Walk-off Angle @ 45° (ρ)
no = 1.9929, ne = 2.2154, Δn = 0.2225, ρ= 6.04° at 630nm
no = 1.9500, ne = 2.1554, Δn = 0.2054, ρ= 5.72° at 1300nm
no = 1.9447, ne = 2.1486, Δn = 0.2039, ρ= 5.69° at 1550nm
Sellmeier Equation(λ in μm) no2 = 3.77834 + 0.069736/(λ2 - 0.04724) - 0.0108133λ2
ne2 = 4.59905 + 0.110534/(λ2- 0.04813) - 0.0122676λ2



3.Crystro offers:

Dimension tolerance ±0.05mm
Optical axis orientation ±0.2°
Parallelism <15″
Perpendicularity <10′
Flatness λ/10 @ 633nm
Surface Quality 20/10
AR Coating upon customer's Specification
