25mm Magneto Optical TB3Ga5O12 TGG Crystal High Feld Constant

Good Optical Performance Dia 4*25mm Terbium Gallium Garnet Crystals

Introduction :

Terbium gallium garnet crystal (TGG) is a high-performance magneto-optical crystal in the visible and near-infrared spectrum. It is widely used in laser technology, optical communication, and optical information processing technology. It has the characteristics of high Feld constant, low light absorption coefficient, high laser damage threshold, and good optical performance. These good material properties make TGG crystal an ideal material for magneto-optical isolators.

In recent years, the growth of large-size and high-quality TGG crystals has always been a hot research topic in the field of crystal materials. With the unremitting efforts of the professional R&D team, Crystro has successfully grown TGG crystals with a diameter of 100mm in June 2020.

Features :

• Large Size Boule Diameter: up to 4”
• Extinction Ratio Typical: >35 dB High Grade: >40 dB
• Verdet Constant 40 rad/T/m at 1064 nm
• Refractive Index 1.95 at 1064 nm

TGG Transmission Curve :

Crystro TGG rods specification :

We can offer to customize TGG crystal sizes upon your request.

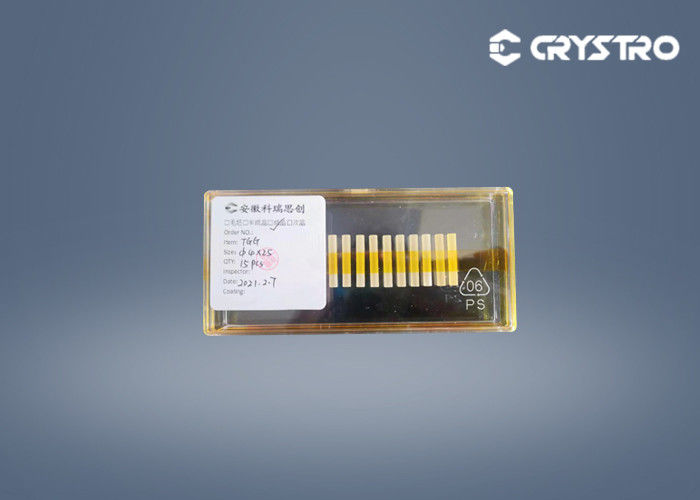

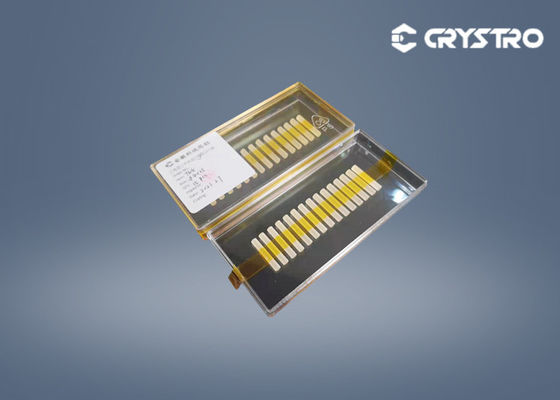

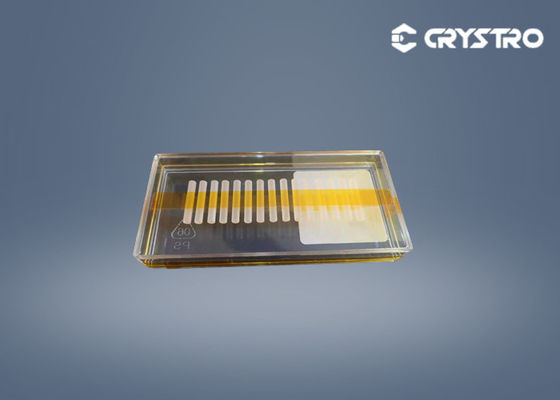

Product Details :
