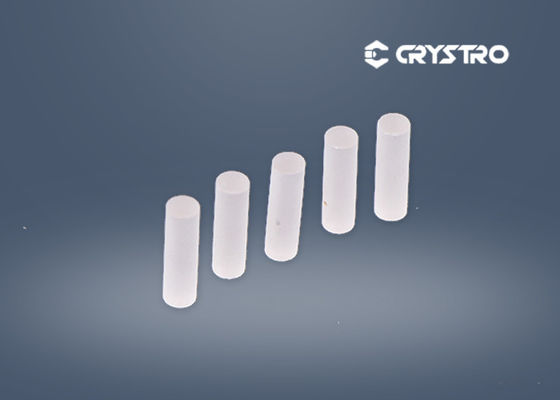

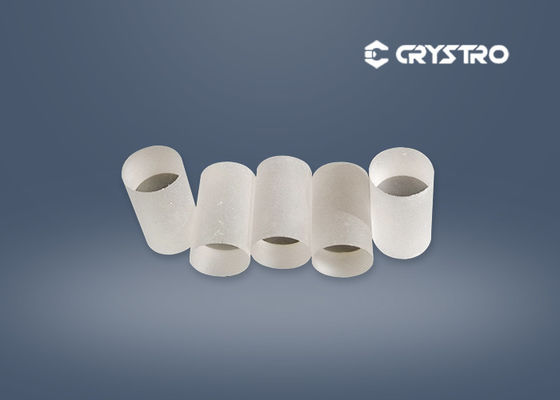

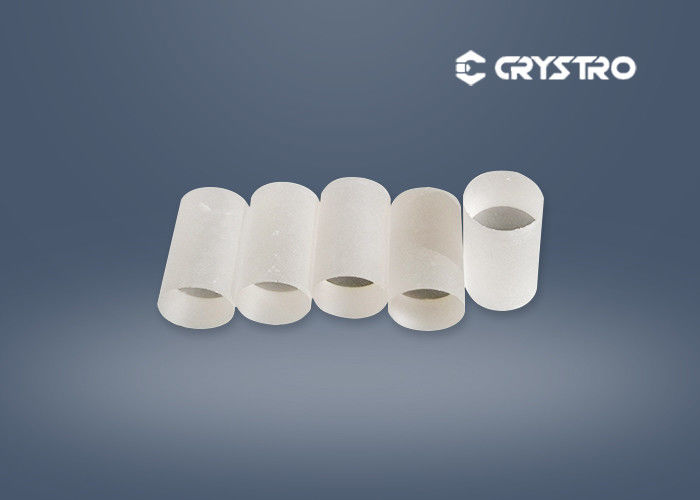

Magneto Optical Material Low Optical Loss TGG Crystal Rods

Magneto Optical Material Low Optical Loss TGG Crystal Rods
Magneto Optical Material Low Optical Loss TGG Crystal Rods Magneto Optical Material Low Optical Loss TGG Crystal Rods Magneto Optical Material Low Optical Loss TGG Crystal Rods

Large Image :  Magneto Optical Material Low Optical Loss TGG Crystal Rods

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ROHS/REACH
Model Number: CRTGG-22
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: Terbium Gallium Garnet Chemical Formula: TB3Ga5O12
Growth Method: Czochralski Crystal Structure: Cubic
Density: 7.13g/cm3 Mohs Hardness: 8.0
Melting Point: 1725℃ Refractive Index: 1.954 At 1064nm
Lattic Parameter: A=12.355Å
High Light:

7.13g/cm3 TGG Magneto Optical Material

,

7.13g/cm3 TGG Crystal

,

TGG Crystal Rods





Low Optical Loss Magneto-Optical Material Terbium Gallium Garnet TGG Crystal Rods Dia 10*15 mm



Introduction :



Terbium gallium garnet (Tb3Ga5O12, TGG) crystal has a large Verdet constant, low transmission loss, high thermal conductivity, and high laser damage threshold. It is the best choice for making Faraday isolators in high-power all-solid-state lasers.



Main Features :

  • Large Size Boule Diameter: up to 4”
  • Extinction Ratio Typical: >35 dB High Grade: >40 dB
  • Verdet Constant 40 rad/T/m at 1064 nm
  • Refractive Index 1.95 at 1064 nm



Main Advantages :

1. Large Verdet Constant:35 Rad T-1m-1

2. Low Optical Losses : <0.1%/cm

3. High thermal conductivity: 7.4W m-1K-1

4. High laser damage threshold :>1GW/cm2





Crystro TGG rods specification :

We can offer customize TGG crystal sizes upon your request.



Orientation [111] within ±15 arc min
Wavefront Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arcmin
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--100 mm in diameter
