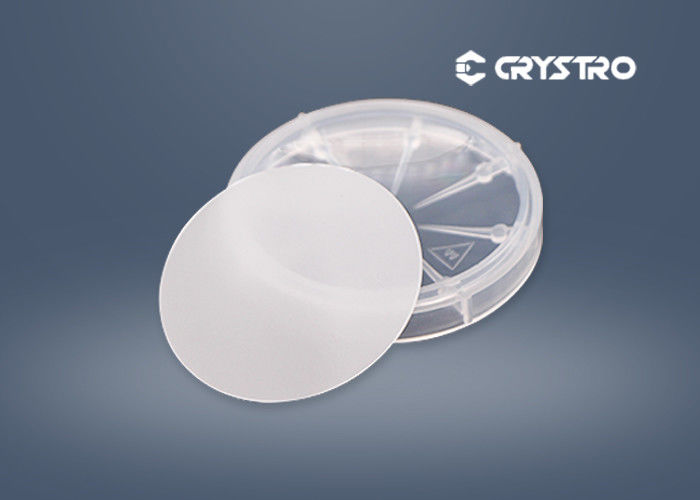

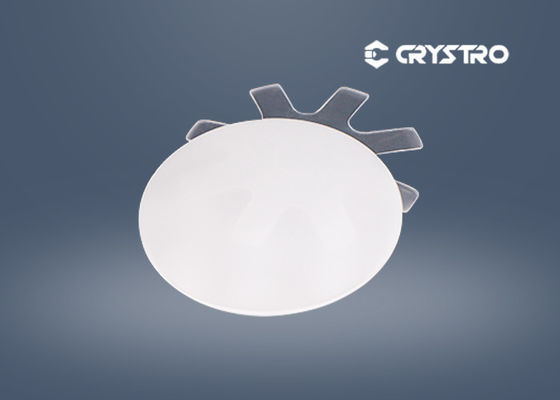

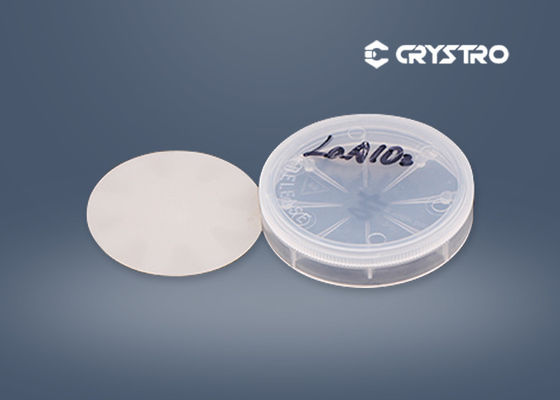

Crystro Thin Film Substrates Lanthanum Aluminate LaAlO3 Crystal

Crystro Thin Film Substrates Lanthanum Aluminate LaAlO3 Crystal
Crystro Thin Film Substrates Lanthanum Aluminate LaAlO3 Crystal Crystro Thin Film Substrates Lanthanum Aluminate LaAlO3 Crystal Crystro Thin Film Substrates Lanthanum Aluminate LaAlO3 Crystal

Large Image :  Crystro Thin Film Substrates Lanthanum Aluminate LaAlO3 Crystal

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRLAO-8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: LaAlO3 Substrates Crystal Orientation: <100> <110> <111>
Thickness: 0.5mm /1.0mm Polishing: SSP OR DSP
Melting Point (℃): 2080℃ Density: 6.52 (g/cm 3)
Redirection Precision: ±0.2° Redirection The Edge: 2°(special In 1°)
High Light:

LaAlO3 Crystal Wafer

,

Lanthanum aluminate Substrates

,

Lanthanum aluminate Wafer

Crystro Thin Film Substrates LaAlO3 ( Lanthanum aluminate) Wafer Substrates



Introduction :

LaAIO3 is a high temperature superconducting single crystal substrate. It is well-matched with YBaCuO high-temperature superconducting thin film materials in a lattice with lower dielectric constant, low loss microwave. The dielectric properties of LaAlO3 crystal are well suitable for high-temperature superconducting microwave electronic devices.





Main Features :

  • good chemical stability
  • Good lattice match to most materials with Perovskite structure
  • Low dielectric constant
  • Low microwave loss

Applications :

  •  High-Temperature Superconducting, magnetic, and ferroelectric thin films
  •  Low loss microwave applications
  •  Dielectric resonance applications





Material Properties :

Crystal Structure Cubic
Growth Method

Czochralski method

Density

6.52(g/cm3)

Melt Point 2080℃
Hardness 6.5 Mohs

Thermal expansion

9.2 × 10^-6

Dielectric constants

24

Secant loss(10ghz)

~ 3 × 10 -4 @ 300k, ~ 0.6 × 10 -4 @ 77k

Color and appearance

Transparent to brown based on annealing condition

























Crystro offers :

Size  Max Φ 76.2mm (3''inches)
Thickness 0.5mm /1.0 mm
Polishing Single or Double
Crystal Orientation

<100> <110> <111>

Redirection precision

±0.5°

Redirection the edge

2°(special in 1°)

Angle of crystalline

Special size and orientation are available upon request

Ra

≤5Å(5µm×5µm)

Pack

Class100 clean bag,Class 1000 clean bag
