Product Details:
Payment & Shipping Terms:
|
| Name: | Ce:LUAG | Chemical Formula: | Ce: Lu3Al5O12 |
|---|---|---|---|
| Size: | 5*5*0.3 Mm | Density: | 6.73 G/cm3 |
| Hardness: | 8.5 | Melting: | 1970℃ |
| Cell Parameters(Å): | 11.914 | Polish: | SSP Or DSP |
| High Light: | 5*5*0.3mm Ce LuAG Crystals,5*5*0.3mm Ce LuAG Scintillation Crystals,Laser Lighting Ce LUAG Crystal |
||

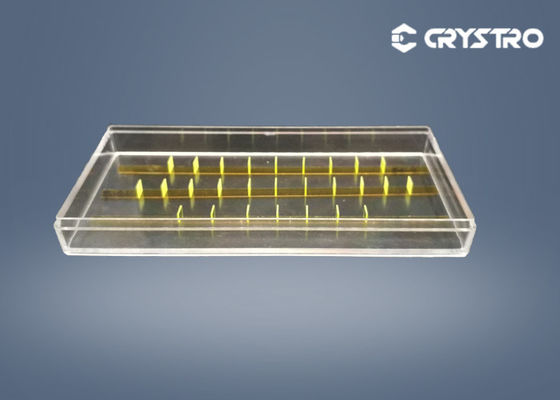

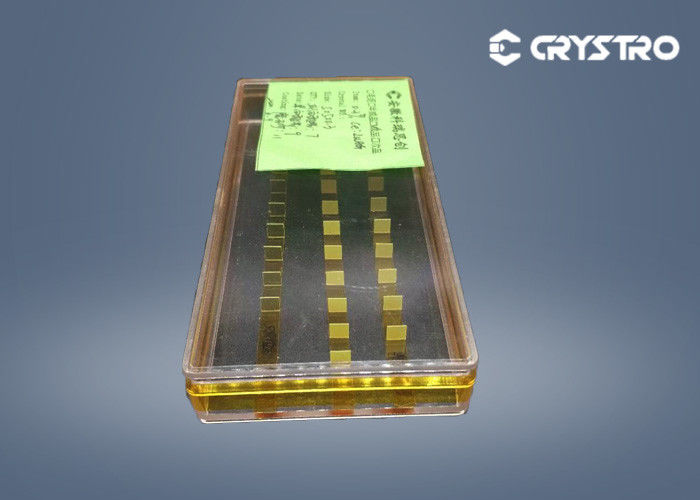

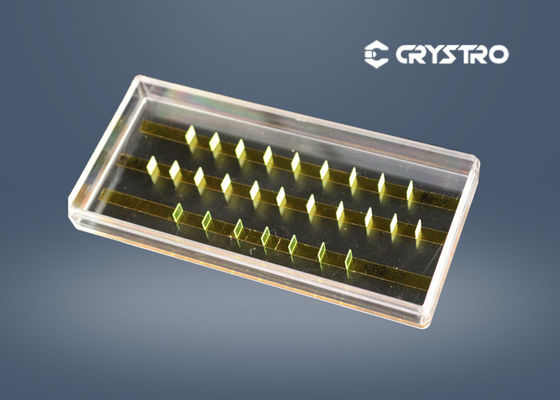

Cerium Doped Lutetium aluminum garnet ( Ce: LuAG ) Scintillation Crystal
Ce: LuAG crystal is a kind of high-density fast scintillation material. It is also an ideal material for medical scanning systems (Computed tomography, Positron emission computed tomography,) high-energy particle detectors, and laser lighting. Ce: LUAG also has a high density (6.73g/cm3) and fast decay (80ns), which is suitable for thin imaging screens.
Main Properties:
| Property | Ce: LuAG |
| Hardness | 8.5 |
| Density | 6.73 g/cm3 |
| Thermal conductivity(W/℃cm,25℃) | 0.08 |
| expanding coefficient(10-6/℃) | 8.8 |
| Refractive index(λ=1.079μm) | 1.84 |
| Emission peak (nm) | 510 |
| Light yield (Photons•Mev-1) | 15000 |
| Decay time(ns) | 80 |
| Energy resolution | <8% |
Features:
Applications:
Crystro supply CeLuAG crystal with:
| Orientation Tolerence | <0.5° |
| Thickness/Diameter Tolerance | ±0.05 mm |
| Parallel | 10'' |
| Perpendicular | 5' |
| Surface Quality | 10/5 |
| Clear Aperture | >90% |
| Chamfer | <0.2×45° |
| Maximum dimensions | dia 60 mm |
Product details :
