Product Details:
Payment & Shipping Terms:
|

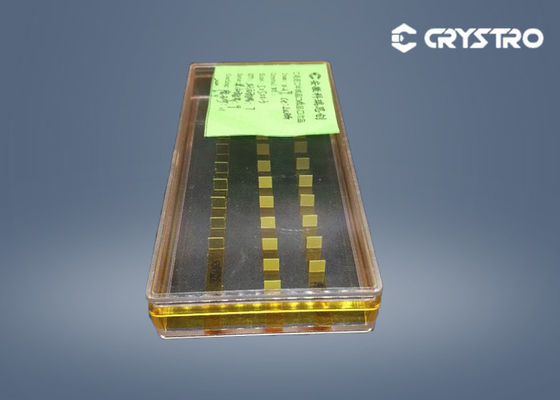

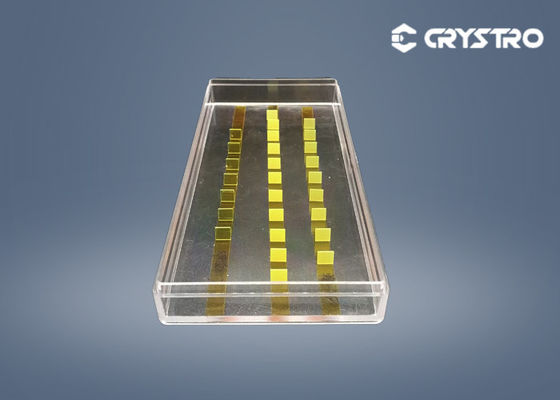

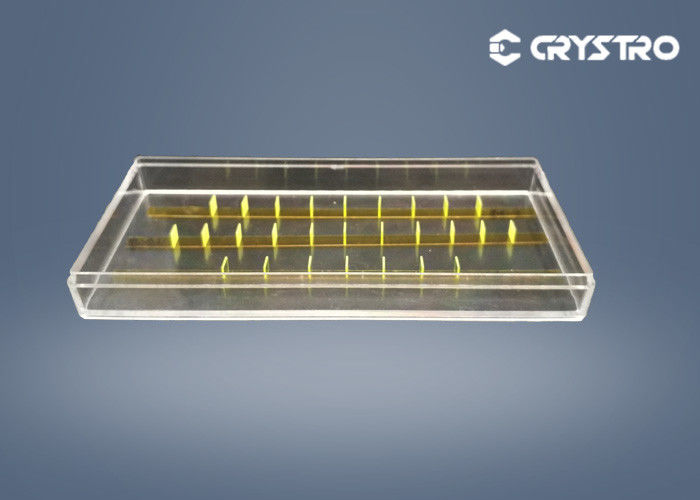

| Name: | Ce:LUAG | Chemical Formula: | Ce: Lu3Al5O12 |
|---|---|---|---|
| Size: | 5*5*0.3mm | Polish: | SSP OR DSP |
| Density: | 6.73 G/cm3 | Hardness: | 8.5 |
| Melting: | 1970℃ | Cell Parameters(Å): | 11.914 |
| Refractive Index(λ=1.079μm): | 1.84 | ||
| High Light: | 5*5*0.3mm LUAG Ce,LUAG Ce Scintillation Crystal Material,5*5*0.3mm Scintillation Crystal Material |
||
Ce: LuAG is a well-established scintillator and has many attractive properties, such as fast decay (80ns), high light yield, emission peaks at 510nm that well-matched with the sensitivity of commercial Si-CCD detectors as well as good mechanical and chemical stability.The Ce: LuAG is also a very appropriate crystal for imaging screens, LED lighting, and laser lighting.
| Property | Ce: LuAG |
| Hardness | 8.5 |
| Density | 6.73 g/cm3 |
| Thermal conductivity(W/℃cm,25℃) | 0.08 |
| expanding coefficient(10-6/℃) | 8.8 |
| Refractive index(λ=1.079μm) | 1.84 |
| Emission peak (nm) | 510 |
| Light yield (Photons•Mev-1) | 15000 |
| Decay time(ns) | 80 |
| Energy resolution | <8% |
| Orientation Tolerence | <0.5° |
| Thickness/Diameter Tolerance | ±0.05 mm |
| Parallel | 10'' |
| Perpendicular | 5' |
| Surface Quality | 10/5 |
| Clear Aperture | >90% |
| Chamfer | <0.2×45° |
| Maximum dimensions | dia 60 mm |
