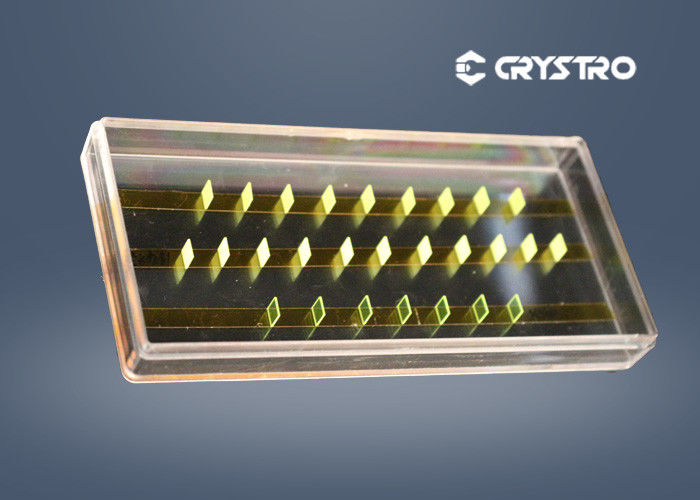

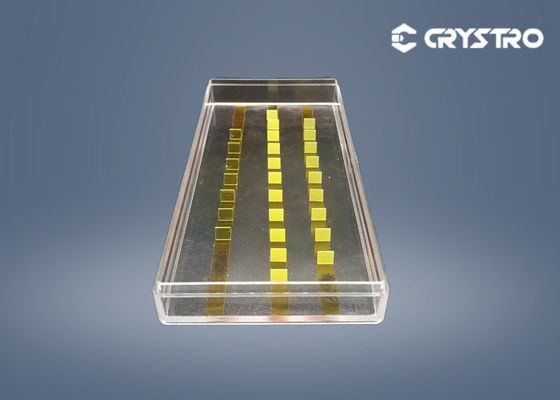

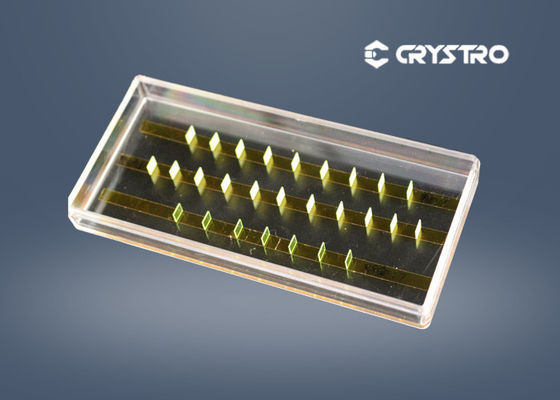

Particle Detectors 5*5*0.3mm LuAG Ce Crystal Scintillation Crystals

Particle Detectors 5*5*0.3mm LuAG Ce Crystal Scintillation Crystals
Particle Detectors 5*5*0.3mm LuAG Ce Crystal Scintillation Crystals Particle Detectors 5*5*0.3mm LuAG Ce Crystal Scintillation Crystals Particle Detectors 5*5*0.3mm LuAG Ce Crystal Scintillation Crystals

Large Image :  Particle Detectors 5*5*0.3mm LuAG Ce Crystal Scintillation Crystals

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ISO9001
Model Number: CRLUAG-8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Contact Now
Detailed Product Description
Product Name: Cerium Doped Lutetium Aluminum Garnet Chemical Formula: Ce: Lu3Al5O12
Size: 5*5*0.3mm Polish: Single Side Or Double Sides
Density: 6.73 G/cm3 Hardness: 8.5
Melting: 1970℃ Light Yield (Photons/MeV): 15000
Decay Time (ns): 80
High Light:

5*5*0.3mm LuAG Ce Crystal

,

5*5*0.3mm LuAG Scintillation Crystal

,

LuAG Ce Scintillation Crystals

5*5*0.3mm LuAG(Ce) Crystal Scintillation Crystal For High-Energy Particle Detectors

Ce: LuAG is a well-established scintillator and has many attractive properties, such as fast decay (80ns), high light yield, emission peaks at 510nm that well-matched with the sensitivity of commercial Si-CCD detectors as well as good mechanical and chemical stability.The Ce: LuAG is also a very appropriate crystal for imaging screens, LED lighting, and laser lighting.



Application:

  • Computed tomography (CT)
  • Positron emission computed tomography (PET)
  • Single-photon emission computed tomography (SPECT)
  •  X-ray imaging screens
  •  Laser & LED lighting

Main Advantages :

  • Good mechanical and chemical performance
  • High density
  • Fast decay time
  • Non--hygroscopicity



Main Properties :



Property Ce: LuAG
Hardness 8.5
Density 6.73 g/cm3
Thermal conductivity(W/℃cm,25℃) 0.08
expanding coefficient(10-6/℃) 8.8
Refractive index(λ=1.079μm) 1.84
Emission peak (nm) 510
Light yield (Photons•Mev-1) 15000
Decay time(ns) 80
Energy resolution <8%



Crystro offers :


Orientation Tolerence <0.5°
Thickness/Diameter Tolerance ±0.05 mm
Parallel 10''
Perpendicular 5'
Surface Quality 10/5
Clear Aperture >90%
Chamfer <0.2×45°
Maximum dimensions Max φ 60 mm




Product details :

Particle Detectors 5*5*0.3mm LuAG Ce Crystal Scintillation Crystals 0
