Product Details:
Payment & Shipping Terms:
|
| Product Name: | Faraday Rotator | Center Wavelength: | 1064nm |
|---|---|---|---|
| Clear Aperture: | 2,3,5 Mm Or Others | Peak Isolation: | 35dB |
| Min Isolation: | 30dB | Damage Threshold: | 10J/cm2 @ 10ns |
| Peak Transmission: | ＞98% | M2 Degradation: | <10% |
| High Light: | Magneto Optic TGG Faraday Rotator,1064nm Faraday Rotator,45dB Faraday Rotator |
||

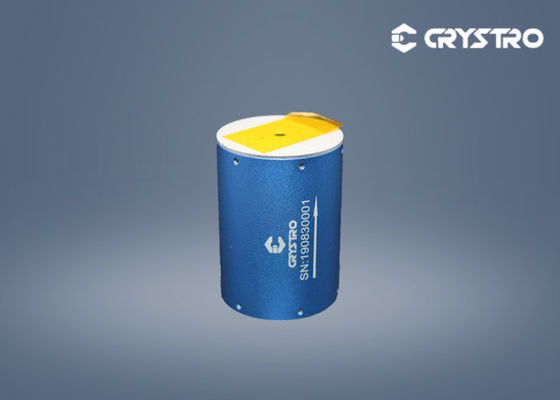

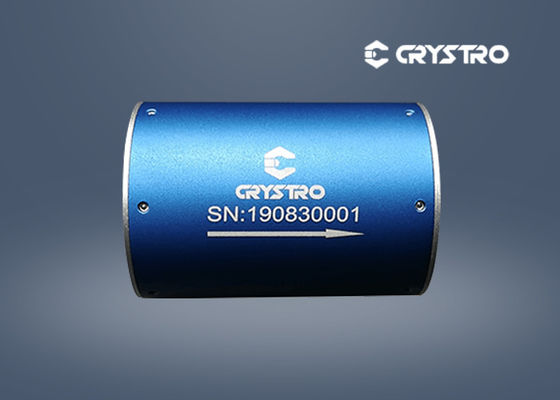

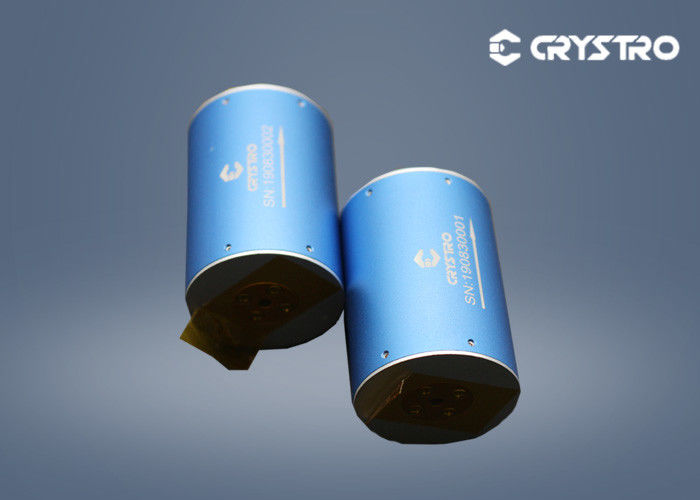

Magneto-Optic TGG Faraday Rotator
Faraday rotator provides non-reciprocal rotation while maintaining linear polarization, The plane of polarization will be rotated 45°when light transmits through the Faraday rotator in the forward direction and rotated an additional 45° in the same relative direction with respect to the magnetic field when light travels backward from the reverse direction. It will generate a total rotation of 90°and reject the light coming from the reverse direction.
Specifications:
| UV | VIS | NIR | IR | |
| Center Wavelength | 355nm | 405-980nm | 1030,1064nm | 1319,2000,4500nm |
| Operating Wavelength Range | ≥±10nm | ≥±10nm | ≥±15nm | ≥±10nm |
| Peak Transmission | >93% | >90% | >92% | >90% |
| Peak Isolation | >35dB | >35dB | >30dB | >35dB |
| M2 Degradation | <10% | <10% | <10% | <10% |
| Clear Aperture | 3,4mm or others | 3,4mm or others | 2,3,4,5,8,10,12 or others | 3,4mm or others |
| Optical Power(Average) | 1,5,10W or Specify | 10,30,50W or Specify | 10,30,50,100W or Specify | 10,30,50W or Specify |
| Damage Threshold | 3.5J/cm2@ 10ns | 3.5J/cm2@ 10ns | 10J/cm2@ 10ns | 5J/cm2@ 10ns |
| Storage Temperature Range | -20-70℃ | |||
| Tunable Temperature Range | 10-30℃ | |||
Features:
Applications:
