Product Details:
Payment & Shipping Terms:
|
| Product Name: | Ho:YAG | Chemical Formula: | Ho:Y3Al5O12 |
|---|---|---|---|
| Growth Method: | Czochralski | Density: | 4.56g/cm3 |
| Mohs Hardness: | 8.25 | Melting Point: | 1965°C |
| Lattic Parameter: | 12.013Å | Crystal Structure: | Cubic |
| Customize: | Available | ||
| High Light: | Ho YAG Yttrium Aluminum Garnet,Ho Yttrium Aluminum Garnet Laser,Laser Materials Ho YAG Rods |
||

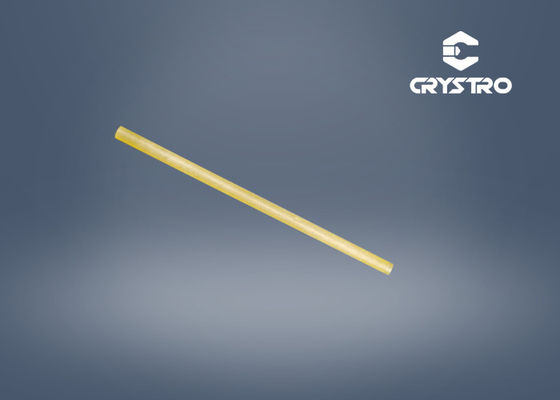

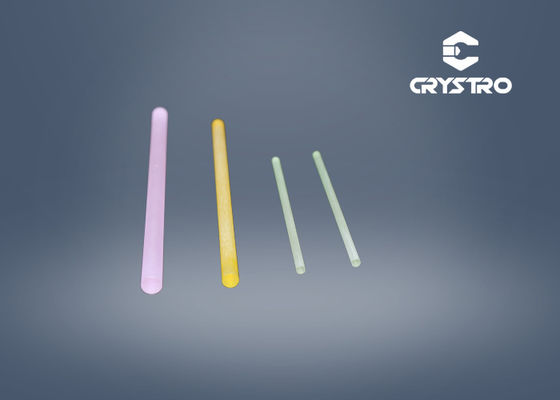

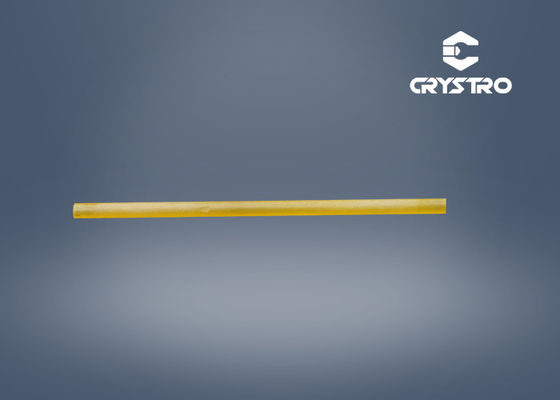

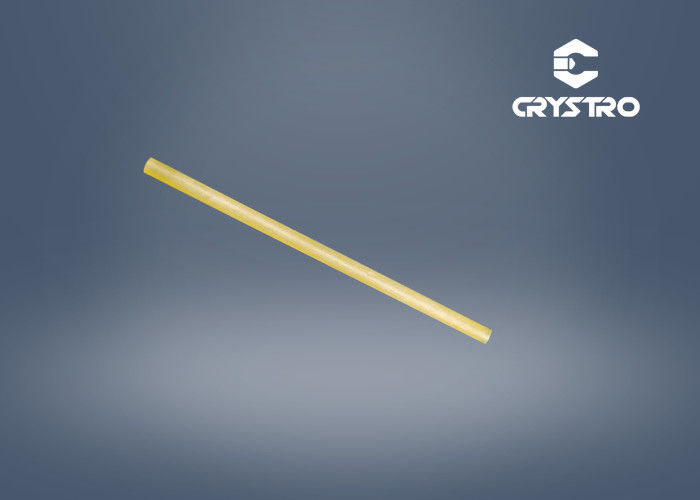

Ho: YAG ( Holmium-doped Yttrium aluminum garnet, Ho: Y3Al5O12) is commonly used as an efficient means to generate 2.1-μm laser emission from the 5I7 - 5I8 transition, for applications such as laser remote sensing, medical surgery, and pumping Mid-IR OPO's to achieve 3-5micron emission.Ho: YAG laser can be pumped directly by diode lasers or by Tm-doped fiber lasers, with high slope efficiencies.
| Chemical Formula | Ho: Y3Al5O12 |
| Crystal Structure | Cubic |
| Lattice Constant | 12.013Å |
| Melting Point | 1965°C |
| Density | 4.56g/cm3 |
| Mohs Hardness | 8.5 |
| Refraction index @633nm | 1.82 |
|
Thermal Expansion Coefficient @ 1064nm |
7.8x10-6/K |
| Specific Heat | 0.59 J/g/K |
| Thermal Conductivity | 11.2 W m-1 K-1 |
