| Product Name: | Chromium Doped Ytterium Aluminum Garnet | Chemical Formula: | Cr4+:Y3Al5O12 |
|---|---|---|---|
| Crystal Structure: | Cubic | Density: | 4.56 G/cm3 |
| Mohs Hardness: | 8.5 | Melting Point: | 1970°C |
| Lattic Parameter: | A=12.01Å | Refractive Index: | 1.83@1064 Nm |
| Thermal Conductivity: | 12.13 W/m/K | ||
| High Light: | Passive Q Switch Laser Material,Cr YAG Laser Material,Chromium Doped Yttrium Aluminum Garnet |
||

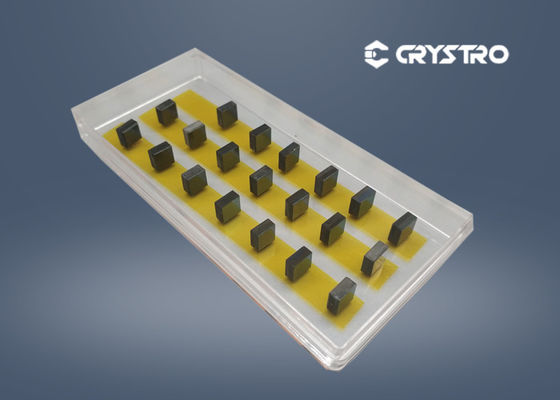

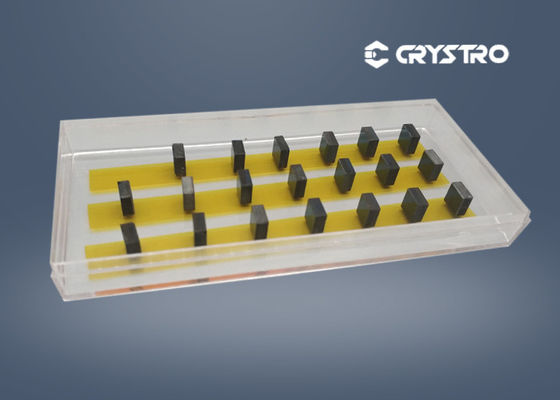

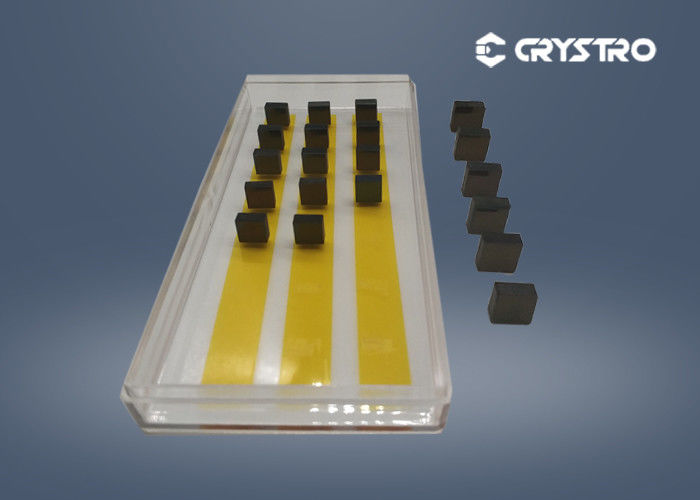

Long lifetime passive q-switch Laser Material Cr:YAG Chromium Doped Yttrium Aluminum Garnet
Introduction :
Passive Q-Switching is preferred for simplicity of manufacture and operation, low cost, and reduced system size
and weight.
Cr: YAG (Chromium doped Yttrium Aluminum Garnet, Cr: Y3Al5O12) is a common passive Q-switching material
for passively Q-switching Nd or Yb lasers.Because of its high damage threshold:500-1000 MW/cm2 and large
absorption cross-section, it could be widely used in Passive Q-switched lasers, and reduce the size of passive
Q-switch elements.
Main Features :
Material Properties :
| Chemical Formula | Cr4+: Y3Al5O12 | Orientation Tolerence | < 0.5° |
| Refractive Index | 1.83 | Surface Quality | 10/5 |
| Thermal Expansion | <111> 7.8*10-6°C@25°C | Parallelism | ＜10″ |
| Specific Heat Capacity | 0.59(J·g-1·K-1) | Perpendicularity | ＜5′ |
