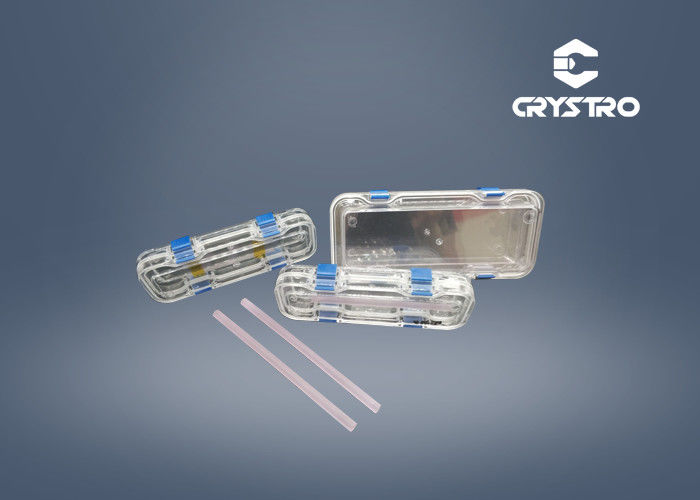

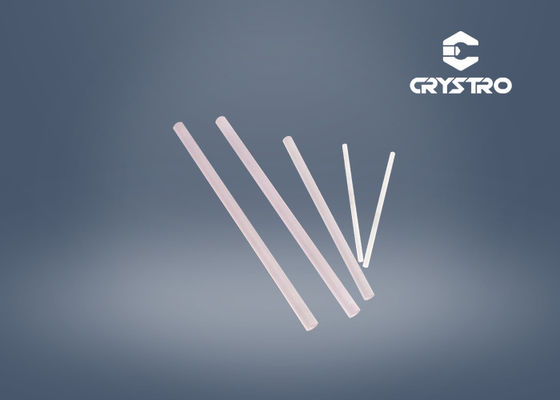

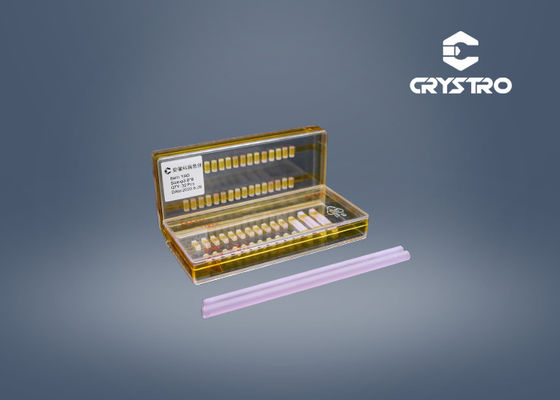

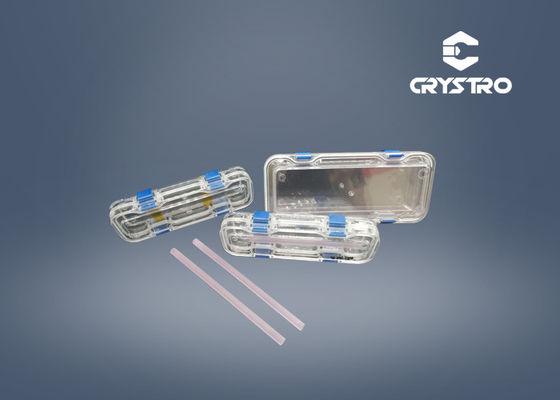

Low Threshold Nd Y3Al5O12 Nd Yag Laser Rods Laser Crystals

Low Threshold Nd Y3Al5O12 Nd Yag Laser Rods Laser Crystals
Low Threshold Nd Y3Al5O12 Nd Yag Laser Rods Laser Crystals Low Threshold Nd Y3Al5O12 Nd Yag Laser Rods Laser Crystals Low Threshold Nd Y3Al5O12 Nd Yag Laser Rods Laser Crystals

Large Image :  Low Threshold Nd Y3Al5O12 Nd Yag Laser Rods Laser Crystals

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRNDYAG-17
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 4 weeks
Payment Terms: T/T, Western Union, MoneyGramm,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Name: Nd:YAG Chemical Formula: Nd:Y3Al5O12
Growth Method: Czochralski Density: 4.5g/cm3
Mohs Hardness: 8.5 Melting Point: 1970℃
Lattic Parameter: A=12.01Å Refractive Index: 1.82
Crystal Structure: Cubic Poisson Ratio: 0.25
Customize: Available
High Light:

Low threshold Nd Yag Laser Rods

,

Nd Yag Laser Crystals

,

Nd Y3Al5O12 Laser Crystals

High-Efficiency Low threshold Nd Yag Laser Rods for laser material processing systems



Introduction :

Nd: YAG (Yttrium aluminum garnet doped with neodymium Nd: Y3Al5O12) is a common laser crystal. Because of its many basic performances, Nd: YAG is still often used in near-far-infrared solid-state lasers. The main advantage of this crystal is the neodymium ion which provides the leasing activity in the crystal because it replaces a small fraction of yttrium ions in the crystal. Nd: YAG is mainly used as a laser in industrial, medical,  and scientific applications





Main Applications :

  • Materials Processing, Welding, Cutting
  • Medical Laser Systems
  • Pulse and CW Operation
  • Range finders and illumination devices;
  • Used in engineering applications such as trimming, drilling;
  • Used for flow visualization techniques;



Main Advantages :

  • High gain, low threshold
  • High efficiency
  • The low loss at 1064nm
  • High Optical quality
  • Good thermal conductivity and shock characteristics





Crystro offers :



Dimension Diameter from 3 to 40mm
Nd Dopant level From 0.3-1.5 atm%
Wavefront Distortion 1/8 wave@632
Diameter Tolerance ±0.05mm
Length Tolerance ±0.5mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 10 arc Seconds
Perpendicularity < 15 arcmin
Surface Quality 10/5 Scratch/Dig
Clear Aperture >90%
Damage Threshold >500MW/cm2
