Neodymium Doped Yttrium Aluminum Garnet

Low Threshold Laser Materials D3*9mm Nd YAG Laser Rod

Name: Low Threshold Laser Materials D3*9mm Nd YAG Laser Rod
Brand: Crystro
SKU: CRNDYAG-12
Rating: 4.8 (167 reviews)

Large Image : Low Threshold Laser Materials D3*9mm Nd YAG Laser Rod

Product Details:

Place of Origin:	China
Brand Name:	Crystro
Certification:	SGS
Model Number:	CRNDYAG-12

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable

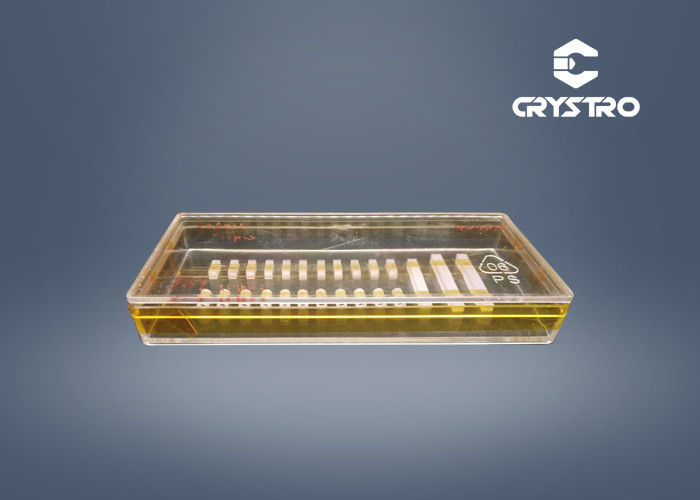

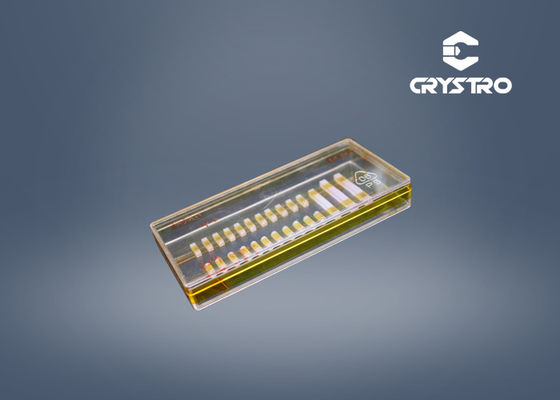

Packaging Details:	Transparent clean box
Delivery Time:	3-4 weeks
Payment Terms:	T/T, Western Union, MoneyGramm,Paypal
Supply Ability:	100 pcs per week

Contact Now

Detailed Product Description

Product Name:	Neodymium Doped Yttrium Aluminum Garnet (Nd:YAG)	Chemical Formula:	Nd:Y3Al5O12
Growth Method:	Czochralski	Size:	D3*9 Mm
Density:	4.5g/cm3	Mohs Hardness:	8.5
Melting Point:	1970℃	Lattic Parameter:	A=12.01Å
Refractive Index:	1.82
High Light:	Nd YAG Low Threshold Laser Materials , D39mm Low Threshold Laser Materials , D39mm Nd YAG Laser Rod

Low threshold Laser Materials Nd: YAG ( Yttrium Aluminum Garnet) Yag Laser Rod

Introduction :

Neodymium Doped Yttrium Aluminum Garnet – Nd: YAG laser crystals remains to be the most popular material for solid-state laser manufacturing. Good fluorescence lifetime, thermal conductivity and robust nature make Nd: YAG laser crystals suitable for high power continuous wave, high-intensity Q-switched, and single-mode operation.

Material Properties :

Chemical Formula	Nd: Y₃Al₅O₁₂
Lattic Parameter	a=12.01Å
Growth Method	Czochralski
Density	4.5g/cm³
Mohs Hardness	8.5
Melting Point	1970℃
Refractive Index	1.82
Extinction Ratio	25 dB
Poisson Ratio	0.25

Main Advantages :

High gain
Low threshold
High efficiency
The low loss at 1064nm
High Optical quality
Good thermal conductivity and shock characteristics
Applicable to many laser working modes(continuous, pulse, Q-switch, mode lock)

Product details :
