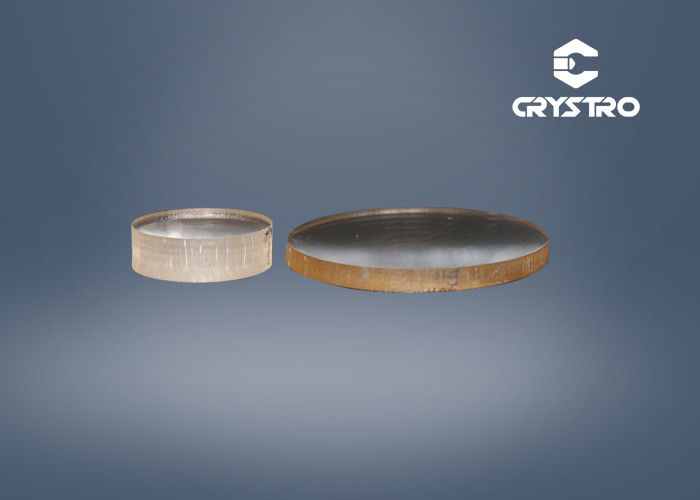

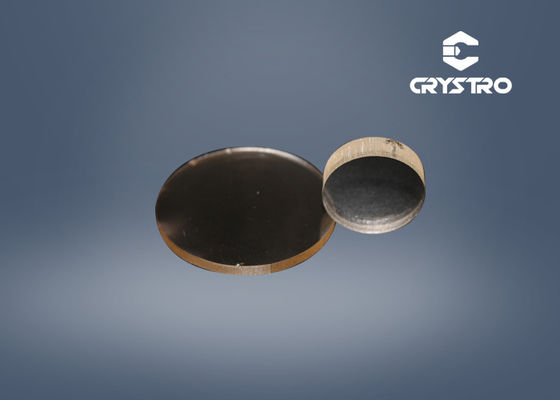

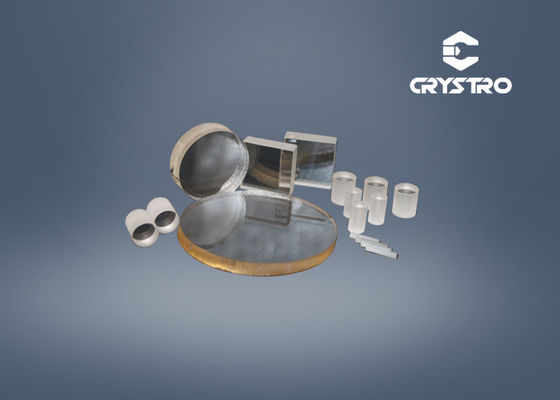

Magneto Optical Crystals TB3Ga5O12 Synthetic TGG Crystal

Magneto Optical Crystals TB3Ga5O12 Synthetic TGG Crystal
Magneto Optical Crystals TB3Ga5O12 Synthetic TGG Crystal Magneto Optical Crystals TB3Ga5O12 Synthetic TGG Crystal Magneto Optical Crystals TB3Ga5O12 Synthetic TGG Crystal

Large Image :  Magneto Optical Crystals TB3Ga5O12 Synthetic TGG Crystal

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ROHS
Model Number: CRTGG-20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: TGG Crystal Chemical Formula: TB3Ga5O12
Growth Method: Czochralski Diameter: Max 4 Inches
Density: 7.13g/cm3 Mohs Hardness: 8.0
Melting Point: 1725℃ Refractive Index: 1.954 At 1064nm
Lattic Parameter: A=12.355Å Verdet(rad/M/T): 190/134/40@532nm/633nm/1064nm
High Light:

TB3Ga5O12 Synthetic TGG Crystals

,

Synthetic Magneto Optical Crystals

,

TB3Ga5O12 TGG Crystal

Synthetic Crystals Magneto-Optical Crystals TGG For Various Faraday Devices



Terbium Gallium Garnet (TGG) is an excellent magneto-optical crystal used in various Faraday devices (Rotator and Isolator) in the range of 400nm-1100nm, excluding 475-500nm.TGG has many advantages compared to other magneto-optical crystals. It has a less optical loss, lower thermally induced beam distortion, and twice bigger Verdet constant than a terbium doped glass.



Main Features :

  • Large Size Boule Diameter: up to 4 Inches
  • Extinction Ratio Typical: >35 dB High Grade: >40 dB
  • Verdet Constant 40 rad/T/m at 1064 nm
  • Refractive Index 1.95 at 1064 nm





Main Advantages :

1. Large Verdet Constant:35 Rad T-1m-1

2. Low Optical Losses : <0.1%/cm

3. High thermal conductivity: 7.4W m-1K-1

4. High laser damage threshold :>1GW/cm



Crystro offers :

Orientation [111] within ±15 arc min
Wavefront Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arcmin
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--100 mm in diameter

































Product Details :

Magneto Optical Crystals TB3Ga5O12 Synthetic TGG Crystal 0
