Dia 28286mm Tb3Ga5O12 TGG Magneto Optical Crystals

Name: Dia 28*28*6mm Tb3Ga5O12 TGG Magneto Optical Crystals
Brand: Crystro
SKU: CRTGG-17
Rating: 4.8 (156 reviews)

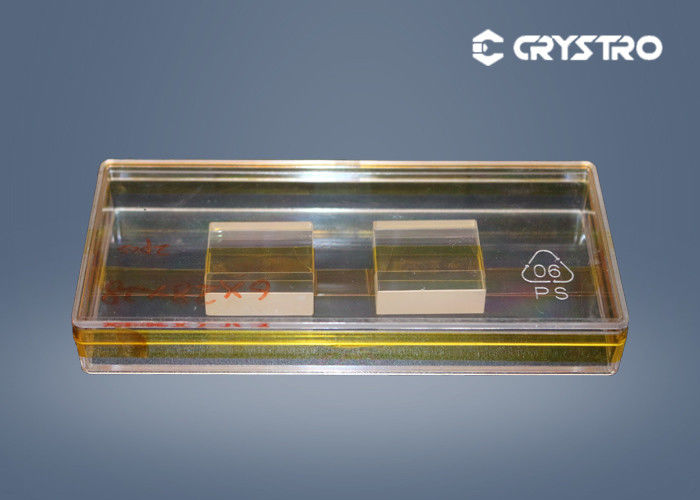

Large Image : Dia 28*28*6mm Tb3Ga5O12 TGG Magneto Optical Crystals

Product Details:

Place of Origin:	China
Brand Name:	Crystro
Certification:	ROHS
Model Number:	CRTGG-17

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Transparent clean box
Delivery Time:	4 weeks
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	100 pcs per week

Contact Now

Detailed Product Description

Name:	Terbium Gallium Garnet	Chemical Formula:	Tb3Ga5O12
Growth Method:	Czochralski	Size:	28286 Mm
Crystal Structure:	Cubic	Density:	7.13g/cm3
Mohs Hardness:	8.0	Melting Point:	1725℃
Refractive Index:	1.954 At 1064nm	Lattic Parameter:	A=12.355Å
High Light:	Tb3Ga5O12 TGG Optical Crystals , 7.13g/cm3 Tb3Ga5O12 Magneto Optical Crystals , Dia 28286mm TGG Crystals

**Dia 28286mm TGG ( Tb3Ga5O12 ) Optical Crystals For Free Space Isolator**

Introduction :
Terbium Gallium Garnet (TGG) is a kind of synthetic garnet, a magneto-optical crystal with a high level of thermal conductivity for Faraday rotators and isolators. It can be used in optical isolators for laser systems, in optical circulators for fiber optic systems, in optical modulators, and in current and magnetic field sensors.

Basic Properties :

Chemical Formula	TB₃Ga₅O₁₂
Lattice Parameter	a=12.355Å
Growth Method	Czochralski
Density	7.13g/cm³
Mohs Hardness	8.0
Melting Point	1725℃
Refractive Index	1.954 at 1064nm

Main Features :

Large Size Boule Diameter: up to 4”
Extinction Ratio Typical: >35 dB High Grade: >40 dB
Verdet Constant 40 rad/T/m at 1064 nm
Refractive Index 1.95 at 1064 nm

Crystro TGG specification :

We can offer to customize TGG crystal sizes upon your request.

Orientation	[111] within ±15 arc min
Wavefront Distortion	<1/8 wave
Extinction Ratio	>35dB
Diameter Tolerance	+0.00mm/-0.05mm
Length Tolerance	+0.2mm/-0.2mm
Chamfer	0.10mm@45º
Flatness	<1/10 wave at 633nm
Parallelism	< 30 arc Seconds
Perpendicularity	< 5 arcmin
Surface Quality	10/5 Scratch/Dig
AR Coating	<0.2%
Large Dimensions of Crystals	2.0--100 mm in diameter

Product details :

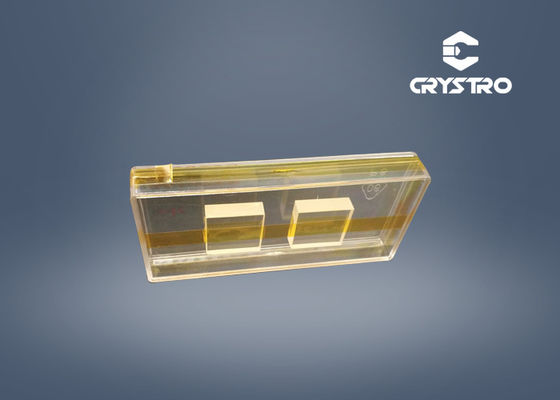

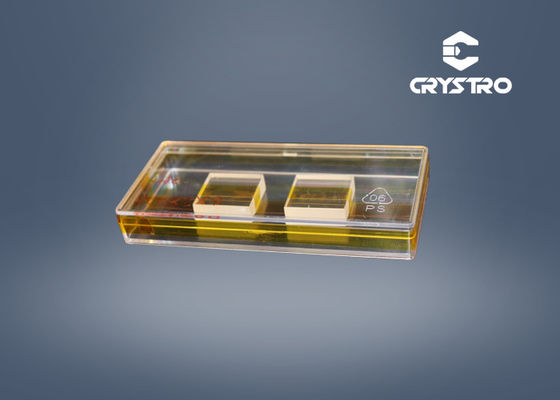

Dia 28*28*6mm Tb3Ga5O12 TGG Magneto Optical Crystals 0
