TSAG Terbium Scandium Aluminum Garnet Crystal Block For Fiber Lasers

Name: TSAG Terbium Scandium Aluminum Garnet Crystal Block For Fiber Lasers
Brand: Crystro
SKU: CRTSAG-8
Rating: 4.9 (141 reviews)

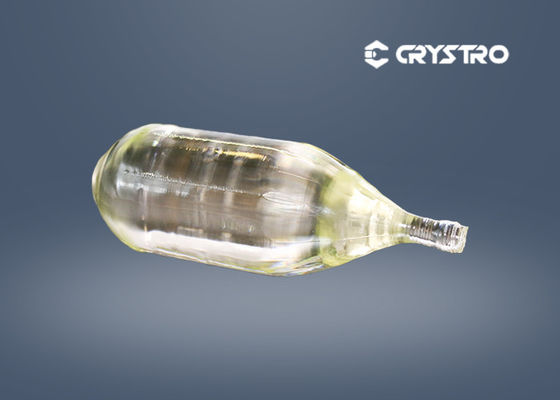

Large Image : TSAG Terbium Scandium Aluminum Garnet Crystal Block For Fiber Lasers

Product Details:

Place of Origin:	China
Brand Name:	Crystro
Certification:	SGS
Model Number:	CRTSAG-8

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Carton Box
Delivery Time:	4 weeks
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	100 pcs per week

Contact Now

Detailed Product Description

Product Name:	TSAG	Material:	Terbium Scandium Aluminum Garnet
Chemical Formula:	Tb3Sc2Al3O12	Lattice Parameter:	A=12.3Å
Density:	5.91g/cm3	Melting Point:	1970℃±10℃
Crystal Structure:	Cubic, Space Group Ia3d	Verdet(red/M/T)):	218/152/65 @532nm/633nm/1064nm
High Light:	Terbium Scandium Aluminum Garnet Crystal Block , TSAG Crystal Block , TSAG Crystal For Fiber Lasers

Customized TSAG Terbium Scandium Aluminum Garnet Crystal Block for fiber lasers

Terbium Scandium Aluminum Garnet Crystal (TSAG) is an important faraday isolator material for the fiber lasers. It is also an ideal visible and infrared magnetic crystal, It has the advantages of high verdet constant, thermal, and mechanical performance.

Material Properties :

Property	Value
Transmission Range	400-1600nm
Crystal Structure	Cubic, Space group la3d
Chemical Formula	Tb₃Sc₂Al₃O₁₂
Lattice Constant	a=12.3Å
Growth Method	Czochralski
Density	5.91g/cm3
Melting Point	1970℃±10℃
Verdet (red/M/T)	218/152/65@532nm/633nm/1064nm

Transmission Curve:

TSAG Terbium Scandium Aluminum Garnet Crystal Block For Fiber Lasers 0

Crystro offers :

Property	Value
Orientation	±15′
Wavefront Distortion	＜λ/8
Extinction Ratio	＞30dB
Diameter Tolerance	+0.00mm/-0.05mm
Length Tolerance	+0.2mm/-0.2mm
Chamfer	＜0.1mm @ 45°
Flatness	＜λ/10 at 633nm
Parallelism	＜3′
Perpendicularity	＜5′
Surface Quality	10/5
AR coating	＜0.2% @ 1064nm

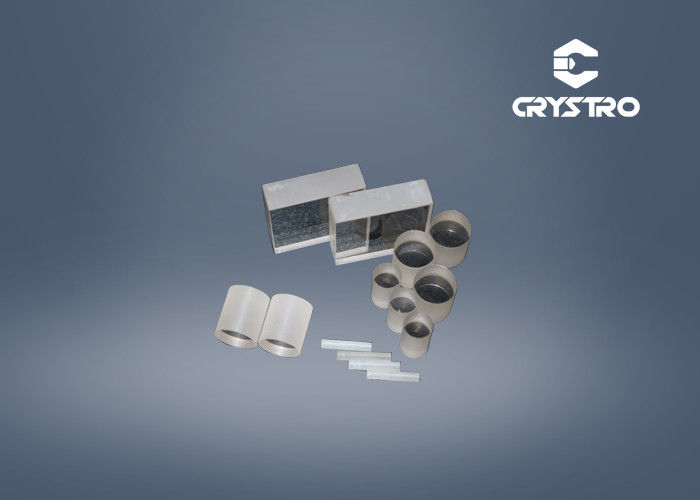

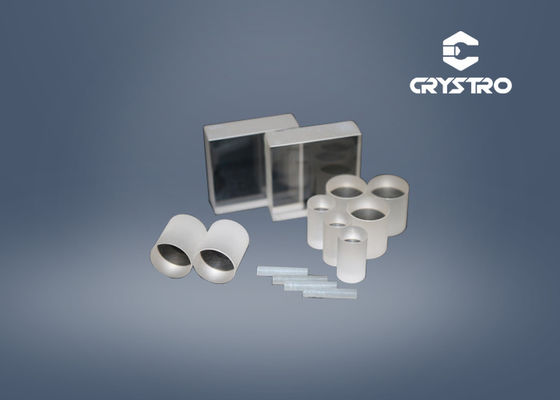

Product details :

TSAG Terbium Scandium Aluminum Garnet Crystal Block For Fiber Lasers 1

Tag:

5.91g/cm3 Terbium Scandium Aluminum Garnet,

Faraday Terbium Scandium Aluminum Garnet,

TSAG Faraday Single Crystals
