Faraday Isolator Material Terbium Scandium Aluminum Garnet TSAG Crystal Rods

Name: Faraday Isolator Material Terbium Scandium Aluminum Garnet TSAG Crystal Rods
Brand: Crystro
SKU: CRTSAG-2
Rating: 4.7 (165 reviews)

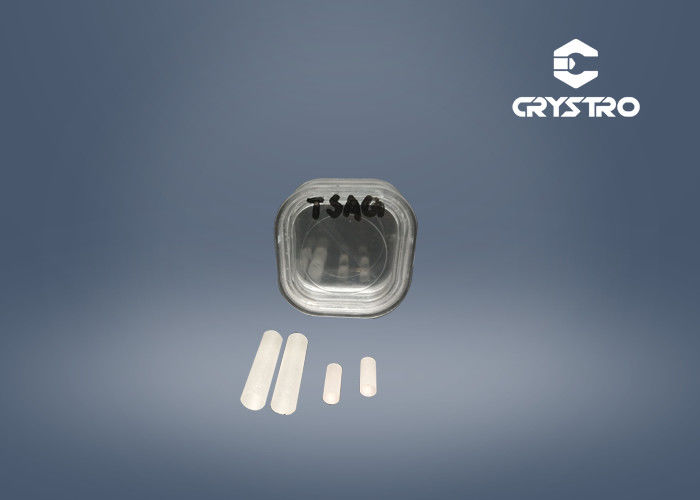

Large Image : Faraday Isolator Material Terbium Scandium Aluminum Garnet TSAG Crystal Rods

Product Details:

Place of Origin:	China
Brand Name:	Crystro
Certification:	SGS
Model Number:	CRTSAG-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Carton Box
Delivery Time:	3-4 weeks
Payment Terms:	T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability:	100 pcs per week

Contact Now

Detailed Product Description

Product Name:	TSAG	Chemical Formula:	Tb3Sc2Al3O12
Lattice Parameter:	A=12.3Å	Density:	5.91g/cm3
Melting Point:	1970℃±10℃	Growth Method:	Czochralski
Crystal Structure:	Cubic, Space Group Ia3d	Verdet(red/M/T)):	218/152/65 @532nm/633nm/1064nm
High Light:	Czochralski TSAG Crystal , 5.91g/cm3 Faraday Isolator TSAG Crystal , 1064nm Terbium Scandium Aluminum Garnet

Faraday Isolator Material Terbium Scandium Aluminum Garnet TSAG Crystal

Terbium Scandium Aluminum Garnet Crystal (TSAG) is an important faraday isolator material for the fiber lasers .It is also an ideal visible and infrared magnetic crystal ,It has the advantages of high verdet constant ,thermal and mechanical performance .

Key Features:

1. Verdet constant 20% higher than TGG(48radT-1m-1 at 1064nm)

2. Absorption 30% lower than TGG(＜3000ppm/cm at 1064nm)

3. Make your isolator small

Material Properties :

Property	Value
Transmission Range	400-1600nm
Crystal Structure	Cubic, Space group la3d
Chemical Formula	Tb₃Sc₂Al₃O₁₂
Lattice Constant	a=12.3Å
Growth Method	Czochralski
Density	5.91g/cm3
Melting Point	1970℃±10℃
Verdet (red/M/T)	218/152/65@532nm/633nm/1064nm

Crystro offers :

Property	Value
Orientation	±15′
Wavefront Distortion	＜λ/8
Extinction Ratio	＞30dB
Diameter Tolerance	+0.00mm/-0.05mm
Length Tolerance	+0.2mm/-0.2mm
Chamfer	＜0.1mm @ 45°
Flatness	＜λ/10 at 633nm
Parallelism	＜3′
Perpendicularity	＜5′
Surface Quality	10/5
AR coating	＜0.2% @ 1064nm
