Product Details:
Payment & Shipping Terms:
|
| Product Name: | Chromium Doped Ytterium Aluminum Garnet | Chemical Formula: | Cr4+:Y3Al5O12 |
|---|---|---|---|
| Density: | 4.56 G/cm3 | Mohs Hardness: | 8.5 |
| Melting Point: | 1970°C | Lattic Parameter: | A=12.01Å |
| Refractive Index: | 1.83@1064 Nm | Thermal Conductivity: | 12.13 W/m/K |
| High Light: | Cr4+ Y3Al5O12 Q Switch Crystal,Cr YAG Q Switch Crystal,Cr4+ Y3Al5O12 Cr YAG Crystal |
||

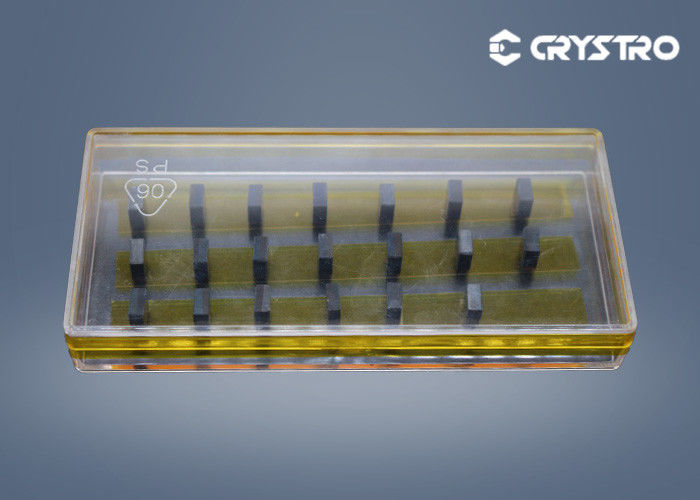

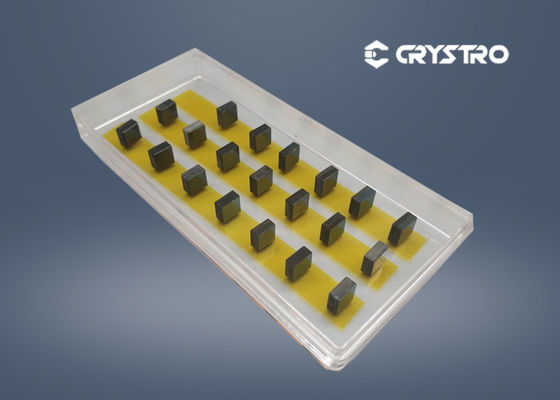

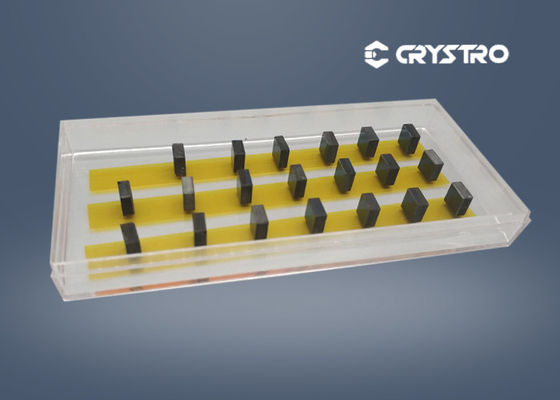

Q-Switch Crystal Cr4+:Y3Al5O12 (Cr:YAG) Crystal For Nd:YAG Lasers
Introduction :
Cr4+: YAG (Chromium doped Yttrium Aluminum Garnet, Cr: Y3Al5O12)) Crystal is an excellent crystal for passively Q-switching diode-pumped or lamp-pumped Nd: YAG or other Nd and Yb doped lasers at a wavelength from 0.8 to 1.2 µm.
Main Advantages :
Material Properties :
| Chemical Formula | Cr4+:Y3Al5O12 | Orientation Tolerence | < 0.5° |
| Refractive Index | 1.83 | Surface Quality | 10/5 |
| Thermal Expansion | <111> 7.8*10-6°C@25°C | Parallelism | ＜10″ |
| Specific Heat Capacity | 0.59(J·g-1·K-1) | Perpendicularity | ＜5′ |
