| Name: | Neodymium-doped Yttrium Aluminum Garnet (Nd:YAG) | Chemical Formula: | Nd:Y3Al5O12 |
|---|---|---|---|
| Size: | 8*185mm | Growth Method: | Czochralski |
| Density: | 4.5g/cm3 | Mohs Hardness: | 8.5 |
| Melting Point: | 1970℃ | Lattic Parameter: | A=12.01Å |
| Refractive Index: | 1.82 | Crystal Structure: | Cubic – La3d |
| Poisson Ratio: | 0.25 | Customize: | Available |
| High Light: | 8*185mm Nd Yag Laser Rods,8*185mm Nd YAG Crystal,Yttrium Aluminum Garnet Nd YAG Crystal |
||

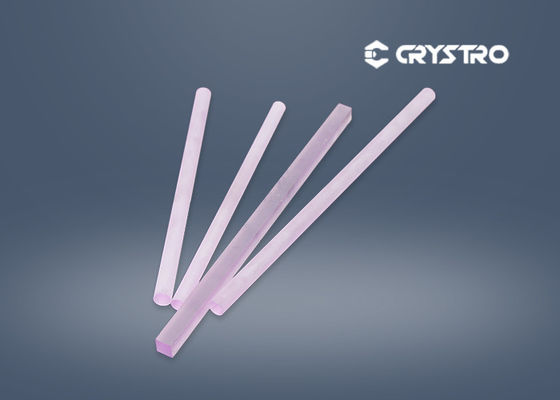

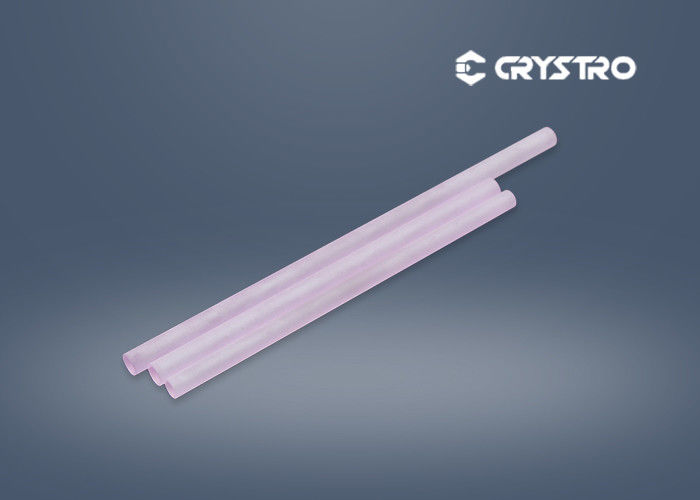

Neodymium Doped Yttrium Aluminum Garnet – Nd:YAG laser crystals remains to be the most popular material for solid-state laser manufacturing. Good fluorescence lifetime, thermal conductivity and robust nature make Nd:YAG laser crystals suitable for high power continuous wave, high intensity Q-switched and single mode operation.
| Chemical Formula | Nd:Y3Al5O12 |
| Lattic Parameter | a=12.01Å |
| Growth Method | Czochralski |
| Density | 4.5g/cm3 |
| Mohs Hardness | 8.5 |
| Melting Point | 1970℃ |
| Refractive Index |
1.82 |
| Extinction Ratio | 25 dB |
| Poisson Ratio | 0.25 |
| Dimention | Diameter from 3 to 40mm |
| Nd Dopant level | From 0.3-1.5 atm% |
| Wave Front Distortion | 1/8 wave@632 |
| Diameter Tolerance | ±0.05mm |
| Length Tolerance | ±0.5mm |
| Chamfer | 0.10mm@45º |
| Flatness | <1/10 wave at 633nm |
| Parallelism | < 10 arc Seconds |
| Perpendicularity | < 15 arc min |
| Surface Quality | 10/5 Scratch/Dig |
| Clear Apereture | >90% |
| Damage Threshold | >500MW/cm2 |
