| Name: | Neodymium-doped Yttrium Aluminum Garnet (Nd:YAG) | Chemical Formula: | Nd:Y3Al5O12 |
|---|---|---|---|
| Growth Method: | Czochralski | Density: | 4.5g/cm3 |
| Mohs Hardness: | 8.5 | Melting Point: | 1970℃ |
| Lattic Parameter: | A=12.01Å | Refractive Index: | 1.82 |
| Crystal Structure: | Cubic – La3d | Poisson Ratio: | 0.25 |
| High Light: | Nd YAG Laser Crystals,Single Crystals Slabs Nd YAG Crystal,Nd YAG Lasers Material |
||

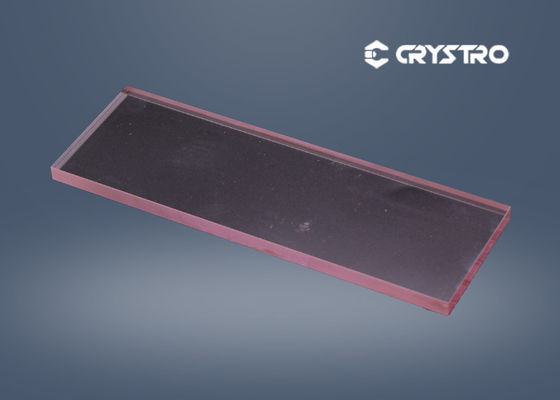

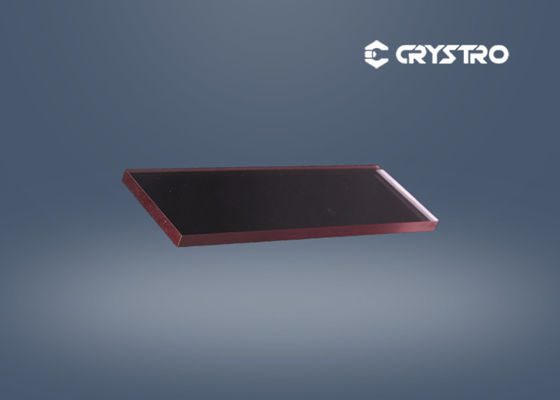

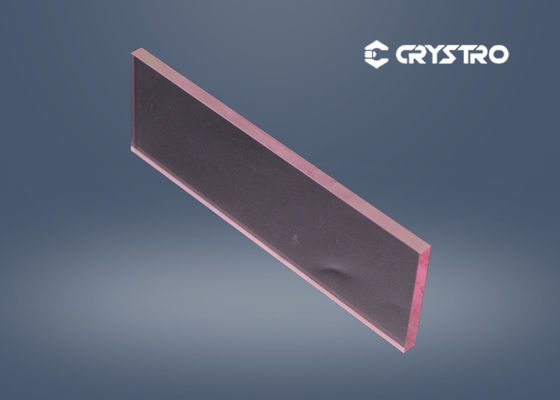

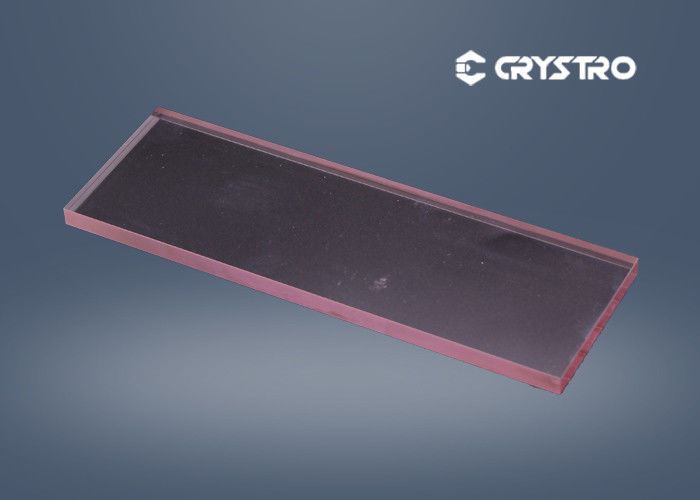

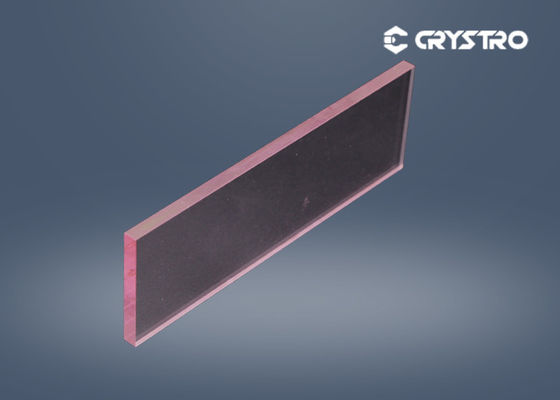

Neodymium Doped Yttrium Aluminum Garnet – Nd:YAG laser crystals remains to be the most popular material for solid-state laser manufacturing. Good fluorescence lifetime, thermal conductivity and robust nature make Nd:YAG laser crystals suitable for high power continuous wave, high intensity Q-switched and single mode operation.
| Dimention | Diameter from 3 to 40mm |
| Nd Dopant level | From 0.3-1.5 atm% |
| Wave Front Distortion | 1/8 wave@632 |
| Diameter Tolerance | ±0.05mm |
| Length Tolerance | ±0.5mm |
| Chamfer | 0.10mm@45º |
| Flatness | <1/10 wave at 633nm |
| Parallelism | < 10 arc Seconds |
| Perpendicularity | < 15 arc min |
| Surface Quality | 10/5 Scratch/Dig |
| Clear Apereture | >90% |
| Damage Threshold | >500MW/cm2 |
