| Name: | Neodymium-doped Yttrium Aluminum Garnet (Nd:YAG) | Chemical Formula: | Nd:Y3Al5O12 |
|---|---|---|---|
| Growth Method: | Czochralski | Density: | 4.5g/cm3 |
| Mohs Hardness: | 8.5 | Melting Point: | 1970℃ |
| Lattic Parameter: | A=12.01Å | Refractive Index: | 1.82 |
| Crystal Structure: | Cubic – La3d | Poisson Ratio: | 0.25 |
| High Light: | Neodymium Doped Nd YAG Crystal,Nd Y3Al5O12 Nd YAG Crystal,Nd Yag Yttrium Aluminum Garnet |
||

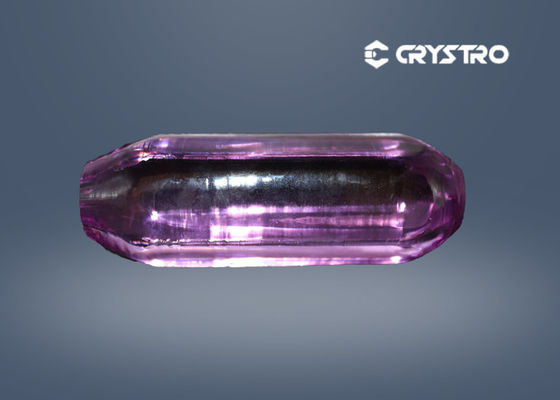

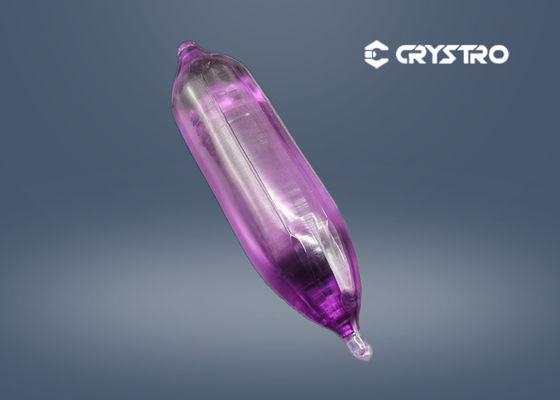

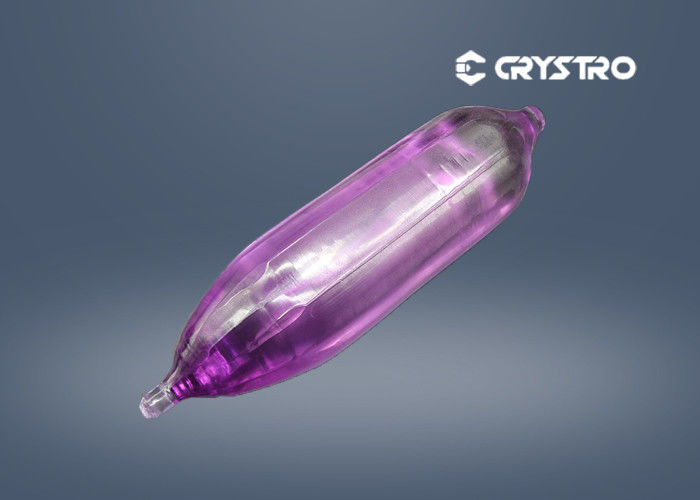

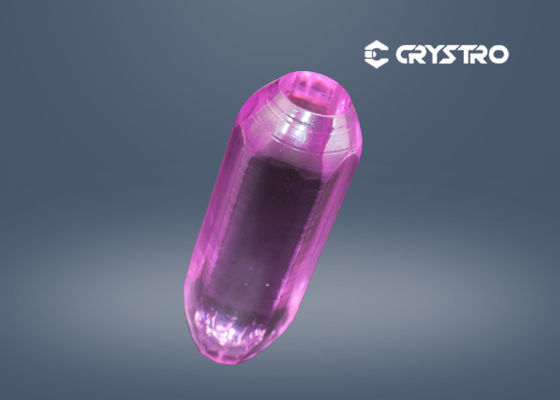

Nd: YAG (Yttrium aluminum garnet doped with neodymium Nd: Y3Al5O12) is a common laser crystal. Because of its many basic performances, Nd: YAG is still often used in near-far-infrared solid-state lasers.The main advantage of this crystal is the neodymium ion which provides the leasing activity in the crystal because it replaces a small fraction of yttrium ions in the crystal. Nd: YAG is mainly used as a laser in industrial, medical, and scientific applications;
| Chemical Formula | Nd: Y3Al5O12 |
| Lattic Parameter | a=12.01Å |
| Growth Method | Czochralski |
| Density | 4.5g/cm3 |
| Mohs Hardness | 8.5 |
| Melting Point | 1970℃ |
| Refractive Index | 1.82 |
| Extinction Ratio | 25 dB |
| Poisson Ratio | 0.25 |
| Dimensions | Diameter from 3 to 40mm |
| Nd Dopant level | From 0.3-1.5 atm% |
| WaveFront Distortion | 1/8 wave@632 |
| Diameter Tolerance | ±0.05mm |
| Length Tolerance | ±0.5mm |
| Chamfer | 0.10mm@45º |
| Flatness | <1/10 wave at 633nm |
| Parallelism | < 10 arc Seconds |
| Perpendicularity | < 15 arcmin |
| Surface Quality | 10/5 Scratch/Dig |
| Clear Aperture | >90% |
| Damage Threshold | >500MW/cm2 |
