Faraday Rotator D8*15mm Large Verdet Constant TGG Crystal

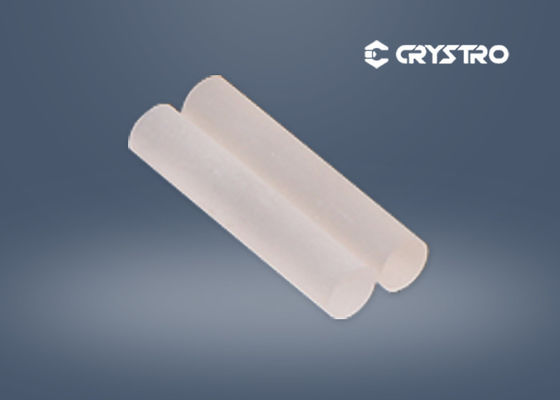

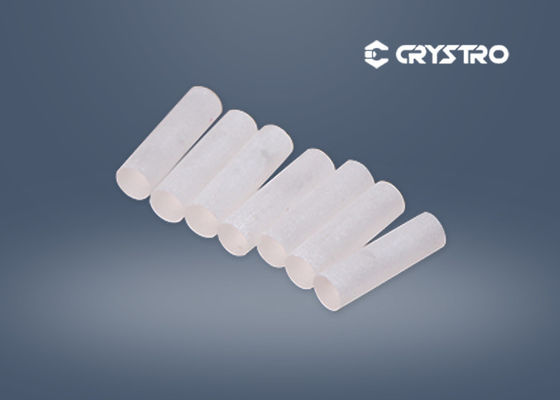

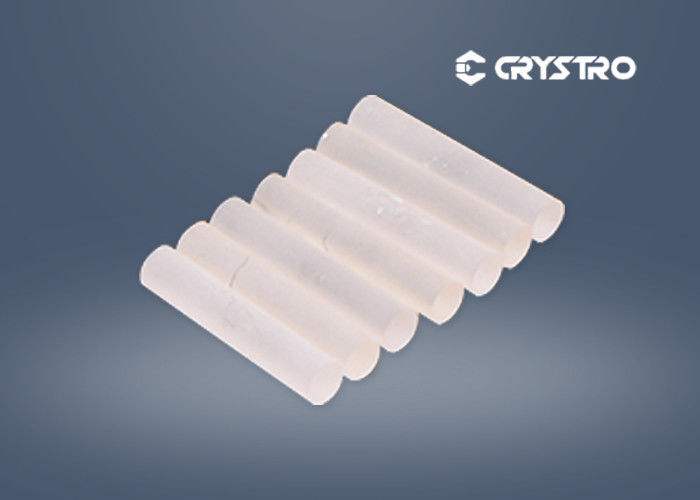

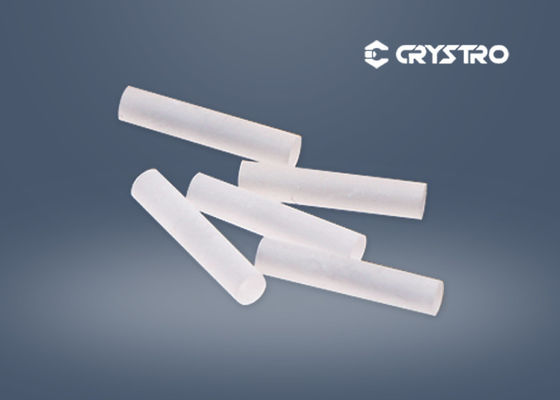

D8*15mm Large Verdet Constant TGG (Terbium Gallium Garnet ) Crystal Rods for Faraday Rotator

Introduction :

Terbium Gallium Garnet (TGG) is a kind of synthetic garnet, a magneto-optical crystal with a high level of thermal conductivity for Faraday rotators and isolators. It can be used in optical isolators for laser systems, in optical circulators for fiber optic systems, in optical modulators, and in current and magnetic field sensors.


Basic Properties :

,

Crystro TGG rods specification :

We can offer customize TGG crystal sizes upon your request.

Main Advantages :

1. Large Verdet Constant:35 Rad T^-1m^-1
2. Low Optical Losses : <0.1%/cm
3. High thermal conductivity: 7.4W m^-1K^-1
4.High laser damage threshold :>1GW/cm²
