Product Details:
Payment & Shipping Terms:
|
| Chemical Formula: | LiNbO3 | Growth Method: | Czochralski |
|---|---|---|---|
| Crystal Sturucture: | Trigonal System | Space Group: | R3c |
| Melting Point: | 1250℃ | Density: | 4.64 G/cm3 |
| Mohs Hardness: | 5 | Deliquescence: | No |
| Optical Homogeneity: | ~ 5 X 10-5 / Cm | Transparency Range: | 420 - 5200 Nm |
| High Light: | Gold Coated LiNbO3 Crystal,Gold Coated Lithium Niobate Crystal,Pockels Cell Piezoelectric Crystals |
||

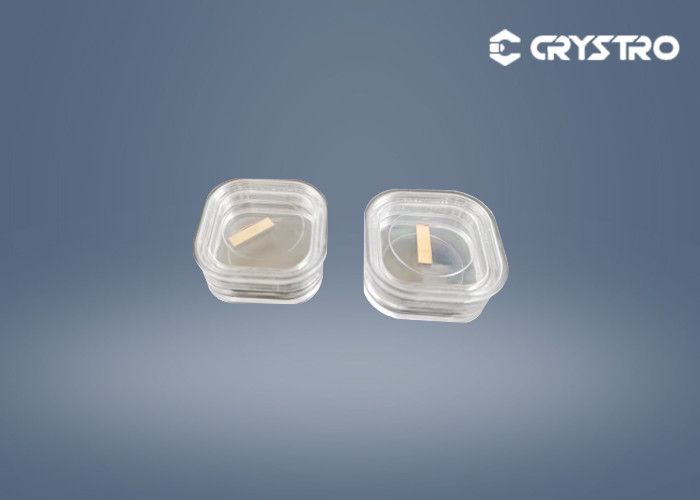

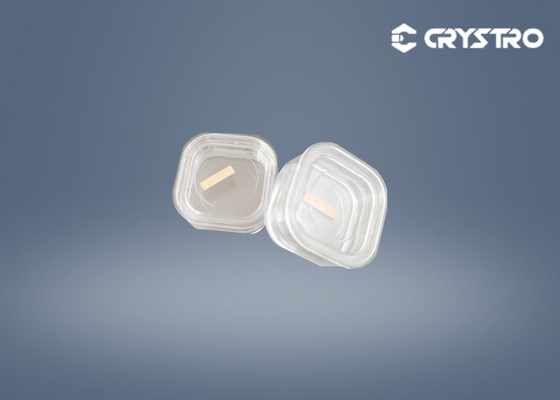

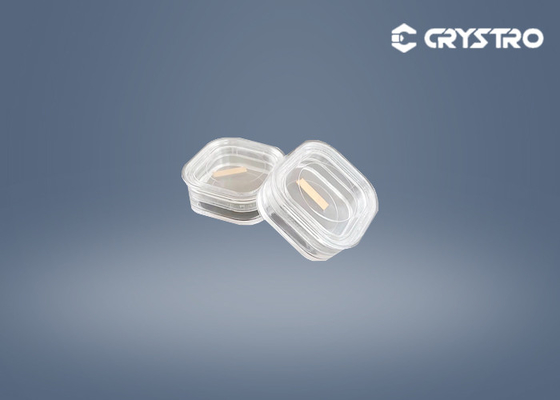

Lithium niobate (LiNbO3) has excellent electro-optic, nonlinear and piezoelectric properties of its inherent materials. Applications using large electro-optic coefficients of lithium niobate include optical modulation and Q switching at infrared wavelengths. Applications of large nonlinear coefficients using LiNbO3 include optical parametric oscillations, different-frequency mixing to generate tunable infrared wavelengths, and second harmonic generation. Applications using piezoelectric properties include ultrasonic transducers and acoustic surface wave devices.
High Damage Threshold Threshold
Specifications:
| Chemical formula | LiNbO3 |
| Crystal structure | Trigonal,Space group R3C |
| Density | 4.64 g/cm3 |
| Mohs hardness | 5 |
| Optical homogeneity | ~ 5 x 10-5 / cm |
| Transparency range | 420 - 5200 nm |
| Absorption coefficient | ~ 0.1 % / cm @ 1064 nm |
| Refractive indices at 1064 nm | ne = 2.146, no = 2.220 @ 1300 nm ne = 2.156, no = 2.232 @ 1064 nm ne = 2.203, no = 2.286 @ 632.8 nm |
| Sellmeier equations (λ, μm) | no2 = 4.9048 + 0.11768 / (λ2 - 0.04750) - 0.027169λ2 ne2 = 4.5820 + 0.099169 / (λ2 - 0.04443) - 0.021950λ2 |
| Thermal expansion coefficient @ 25 °C | //a, 2.0 x 10-6 / K //c, 16.7 x 10-6 / K |
| Thermal conductivity | ~ 5 W/m/K @ 25 °C |
| Thermal optical coefficient | dno/dT = -0.874 x 10-6 / K at 1.4 µm dne/dT = 39.073 x 10-6 / K at 1.4 µm |
LiNbO3 Q-switch Specifications:
| Size | available upon request |
| Tolerance of Size | Z-axis: ± 0.2mm |
| X-axis and Y-axis: ± 0.1mm | |
| Chamfer | less than 0.5 mm at |
| Accuracy of Orientation | Z-axis: ＜ ±5′, X-axis and Y-axis: ＜ ±10′ |
| Parallelism | ＜20′′ |
| Finish | 10/5 scratch/dig |
| Flatness | λ/8 at 633nm |
| AR-Coating | R＜0.2% @1064nm |
| Electrodes | Gold/Chrome plated on X-faces |
| Wavefront Distortion | ＜λ/4 @633nm |
| Extinction Ratio | ＞400:1 @633nm, φ 6mm beam |
