Piezoelectric LiNbO3 Lithium Niobate Crystal For SAW Filter

Certification
China ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd. certification
China ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd. certification
I'm Online Chat Now

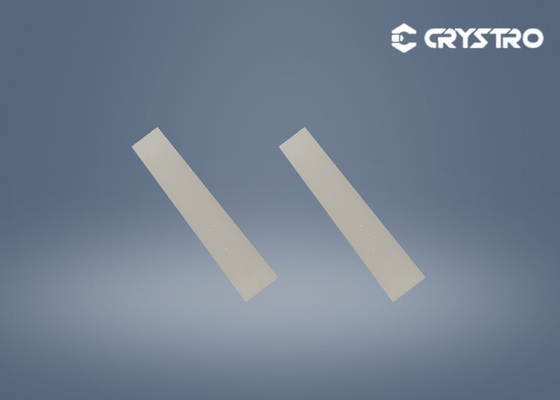

Piezoelectric LiNbO3 Lithium Niobate Crystal For SAW Filter

Piezoelectric LiNbO3 Lithium Niobate Crystal For SAW Filter
Piezoelectric LiNbO3 Lithium Niobate Crystal For SAW Filter Piezoelectric LiNbO3 Lithium Niobate Crystal For SAW Filter

Large Image :  Piezoelectric LiNbO3 Lithium Niobate Crystal For SAW Filter

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs per month
Detailed Product Description
Chemical Formula: LiNbO3 Growth Method: Czochralski
Crystal Structure: Trigonal System Melting Point: 1250℃
Density: 4.64 G/cm3 Mohs Hardness: 5
Refractive Index: No=2.286 Ne=2.203 (632.8nm) Lattice Constant: A=b=5.148Å , C=13.863 Å
Size: 76.2*15*0.4mm
High Light:

Piezoelectric Lithium Niobate Crystal

,

SAW Filter Lithium Niobate Crystal

,

Piezoelectric LiNbO3 Crystal


LiNbO3 Lithium Niobate  crystal For Optical Communication



Introduction:



Lithium niobate crystal has high Curie temperature, low-temperature coefficient of piezoelectric effect, high electromechanical coupling coefficient, low dielectric loss, stable crystal physical and chemical properties, good processing performance, and easy to prepare large-size and high-quality crystals. It is an excellent Piezoelectric crystal material. LN crystals are widely used in surface acoustic wave filters.



In addition to the piezoelectric effect, the photoelectric effect of lithium niobate crystals is very rich, of which electro-optical effect and nonlinear optical effect are outstanding, and they are also the most widely used. It is widely used in electro-optical modulators, integrated optical switches, electro-optical Q-switches, electro-optical deflection,

and other devices.



Advantages:

  • Wide transparency range,
  • High electro-optic and nonlinear optic coefficients,
  • Very high electromechanical coupling coefficients
  • Chemical and mechanical stability.



Specifications:



Growth method Czochralski
Crystal structure Trigonal system
Transparency Range 420-5200nm
Lattice constant a=b=5.148Å c=13.863 Å
Melting point 1250℃
Curie temperature 1142 ℃
Density 4.64 g/cm3
Hardness 5 Mohs
Refractive index No=2.286 ne=2.203 (632.8nm)





Pictures:

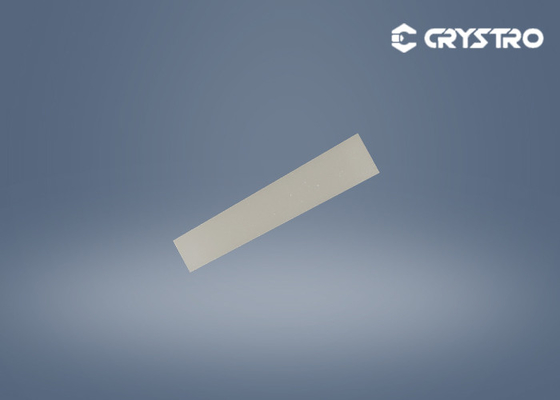

Piezoelectric LiNbO3 Lithium Niobate Crystal For SAW Filter 0
