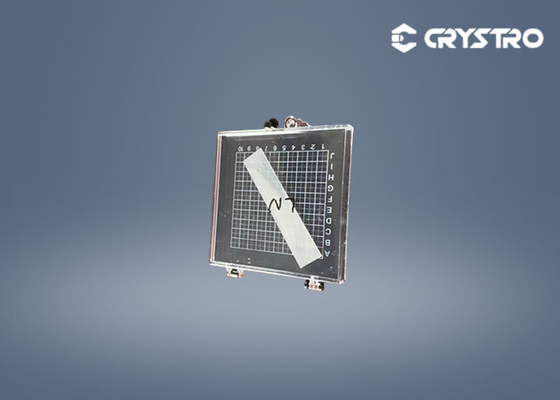

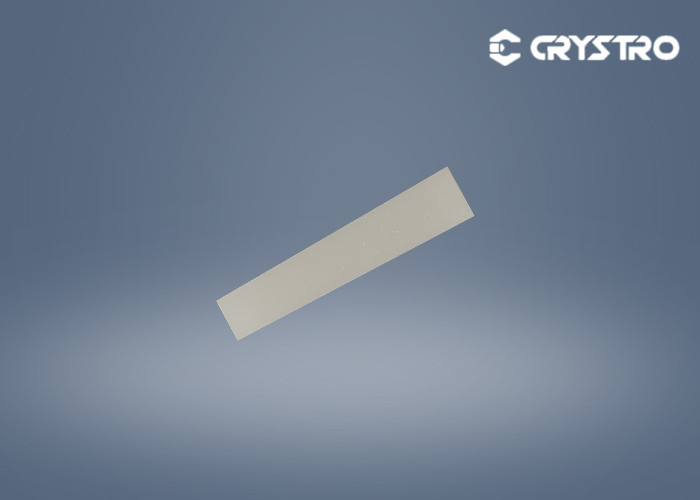

LiNbO3 SAW Devices LN Crystal Chemical Stable For Telecommunication

LiNbO3 SAW Devices LN Crystal Chemical Stable For Telecommunication
LiNbO3 SAW Devices LN Crystal Chemical Stable For Telecommunication LiNbO3 SAW Devices LN Crystal Chemical Stable For Telecommunication

Large Image :  LiNbO3 SAW Devices LN Crystal Chemical Stable For Telecommunication

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs per month
Detailed Product Description
Chemical Formula: LiNbO3 Growth Method: Czochralski
Crystal Structure: Trigonal System Melting Point: 1250℃
Density: 4.64 G/cm3 Mohs Hardness: 5
Refractive Index: No=2.286 Ne=2.203 (632.8nm) Lattice Constant: A=b=5.148Å , C=13.863 Å
Size: 76.2*15*0.4mm
High Light:

SAW Devices LN Crysta

,

LiNbO3 LN Crystal

,

Chemical stable Lithium niobate crystal


LiNbO3 Lithium Niobate  crystal For Optical Communication



Introduction:

Lithium niobate crystal has a long history and the most complete physical effects. It is used to prepare acoustic filters, resonators, electro-optical modulators, and electro-optical Q-switches. Devices such as phase modulators and phase modulators have been widely used in electronic technology, optical communication technology, laser technology, and other fields.



Lithium niobate crystal has two important characteristics. One is that lithium niobate crystal has many photoelectric effects, including piezoelectric effect, electro-optic effect, nonlinear optical effect, photorefractive effect, photovoltaic effect, photoelastic effect, acousto-optic effect The second is that the performance of lithium niobate crystal is highly adjustable, which is caused by the lattice structure and abundant defect structure of lithium niobate crystal.



Advantages:



  • Wide transparency range,
  • High electro-optic and nonlinear optic coefficients,
  • Very high electromechanical coupling coefficients
  • Chemical and mechanical stability.



Specifications:



Growth method Czochralski
Crystal structure Trigonal system
Transparency Range 420-5200nm
Lattice constant a=b=5.148Å c=13.863 Å
Melting point 1250℃
Curie temperature 1142 ℃
Density 4.64 g/cm3
Hardness 5 Mohs
Refractive index No=2.286 ne=2.203 (632.8nm)





LiNbO3 SAW Devices LN Crystal Chemical Stable For Telecommunication 0
