| Material: | LiTaO₃ | Growth Method: | Czochralski |
|---|---|---|---|
| Hardness: | 5.5 | Density: | 7.45g/cm3 |
| Melting Point: | 1650℃ | Cell Parameters: | A=5.154Å,c=13.781Å |
| Crystal Structure: | Trigonal | Curie Temperature: | 605℃ |
| High Light: | Multifunctional Lithium Tantalate Crystal,Multifunctional Lithium Tantalate Crystal,Optical Communication LT Crystal |
||
Introduction:
LT crystal is widely used in the manufacture of electronic communication devices such as resonators, filters, transducers, etc. It is especially used to manufacture high-frequency surface acoustic wave devices due to its good electromechanical coupling and temperature coefficient. Many high-end communication fields such as mobile phones, walkie-talkies, satellite communications, and aerospace.
Features:
Large electro-optic coefficient
| Material | LiTaO3 wafers | |
| Curie Temp | 603±2℃ | |
| Cutting Angle | X/Y/Z/X112Y/Y36/Y42/Y48/etc | |
| Diameter/size | 3”/4”/6" LT wafer | |
| Tol(±) | <0.20 mm | |
| Thickness | 0.18 ~ 0.5mm or more | |
| Primary Flat | 22mm /32mm /42.5mm /57.5mm | |
| LTV (5mmx5mm) | <1µm | |
| TTV | <3µm | |
| Bow | -30<bow<30 | |
| Warp | <40µm | |
| PLTV(<0.5um) | ≥95%(5mm*5mm) | |
| Orientation Flat | All available | |
| Surface Type | Single Side Polished /Double Sides Polished | |
| Back Side Criteria | General is 0.2-0.5µm or as customized | |
| Edge Criteria | R=0.2mm or Bullnose | |
| Fe doped |
Fe doped for saw grade LN< wafers |
|

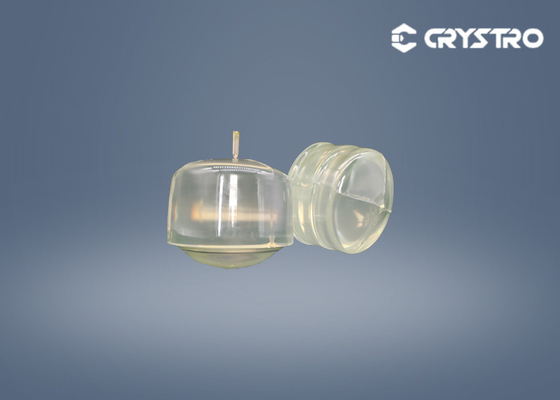

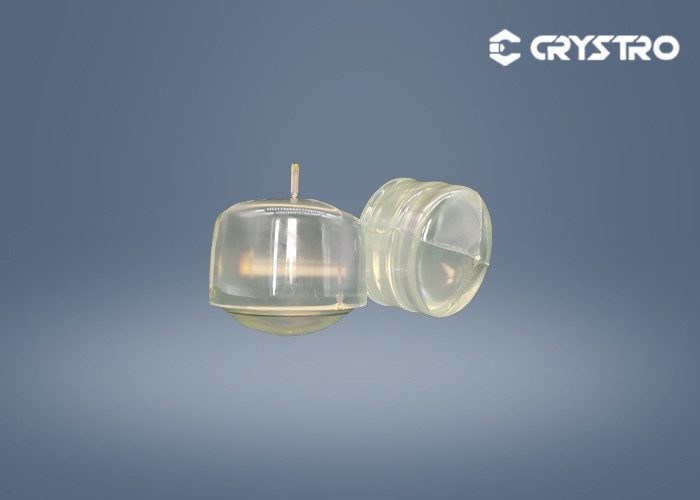

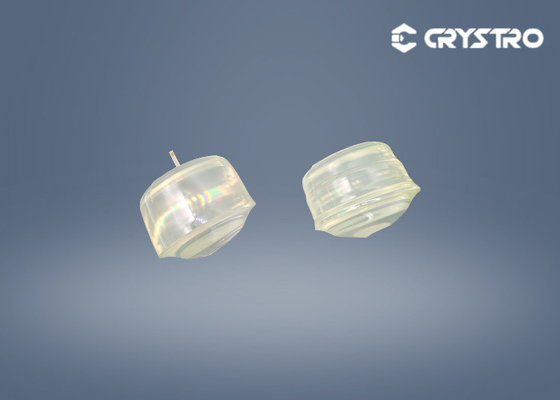

Picture:
