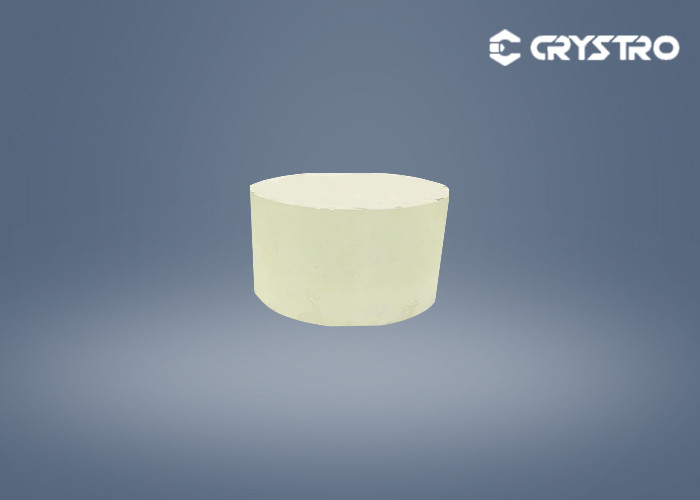

Crystal Material LiTaO3 Wafers For Optical Communication Devices

Crystal Material LiTaO3 Wafers For Optical Communication Devices
Crystal Material LiTaO3 Wafers For Optical Communication Devices Crystal Material LiTaO3 Wafers For Optical Communication Devices Crystal Material LiTaO3 Wafers For Optical Communication Devices

Large Image :  Crystal Material LiTaO3 Wafers For Optical Communication Devices

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Chemical Formula: LiTaO₃ Growth Method: Czochralski
Crystal Structure: Trigonal Density: 7.45g/cm3
Curie Temperature: 603±2℃ Hardness: 5.5-6 Mohs
Melting Point: 1650℃ Lattice Constant: A=5.154Å,c=13.783Å
Transmission Range: 400-5000nm 400-5000nm: R33=30.4
High Light:

LiTaO3 Wafers Crystal Material

,

Optical Communication Lithium Tantalate Crystal




Multi-Functional Crystal Material LiTaO3 Wafers For Optical Communication Devices



Introduction:




LiTaO3 Lithium Tantalate (LT) crystal is an important multifunctional crystal material with excellent piezoelectric, ferroelectric,acoustic-optical, and
electro-optical effects. Therefore, it has become a basic functional material in the field of acoustic surface wave (SAW) devices, optical communication, laser, and optoelectronics. Polished LT wafer is widely used in the manufacturing of resonators, filters, transducers, and other electronic communication devices, especially for its good mechanical and electrical coupling, temperature coefficient, and other comprehensive performance and is used in manufacturing high-frequency acoustic surface wave devices, and applied in many mobile phones, intercom, satellite communication, aerospace, and other communication fields.






Advantages:

  • High optical damage threshold
  • Wide transparency range
  • Wide application



Material Properties:



Crystal Structure

Trigonal

Lattice Constant

a=5.154Å,c=13.783Å

Density

7.45g/cm3

Melting Point

1650℃

Curie Point

603±2℃

Mohs Hardness

5.5-6 Mohs

Thermal Conductivity

1015wm

Refractive Indices

n0=2.176 ne=2.180 @ 633mn

E-O Coefficient

R33=30.4

Transmission Range

400-5000nm

Pyroelectric Coefficient

2.3×10-7 C/cm2/K

Electromechanical Coupling Factor

R15≥0.3

Thermal Expansion Coefficient

a1=a2=1.61×10-6/℃, a3=4.1×10-6/℃

Dielectric Constant

es11/eo:39~43, es33/eo:42~43;et11/eo:51~54, et33/eo:43~46




Crystro offers:

Size

4" ,6" Boule or wafer ,Acoustic or Optical grade

Doping

No Doping or With Fe

Boule Length

≥50mm

Wafer Thickness

Thickness 0.25,0.35,0.50(mm)

Orientation

Y42°/Y36°/X/Y/Z or Upon Request

Surface Process

Single/Double Sides Polishing

TTV

< 10µm

BOW

± (25µm ~40um )

Warp

≤35µm

Flat Width

32.0±2.0(mm) or Upon Request

Roughness

Ra≤10Å

Chamfer

≤0.1mm@45°
