Product Details:
Payment & Shipping Terms:
|
| Chemical Formula: | LiNbO3 | Growth Method: | Czochralski |
|---|---|---|---|
| Crystal Structure: | Trigonal System | Melting Point: | 1250℃ |
| Density: | 4.64 G/cm3 | Mohs Hardness: | 5 |
| Refractive Index: | No=2.286 Ne=2.203 (632.8nm) | Lattice Constant: | A=b=5.148Å , C=13.863 Å |
| High Light: | Lithium Niobate LN Crystal,Optical CommunicationLN Crystal,Optical Communication Lithium Niobate Crystal |
||

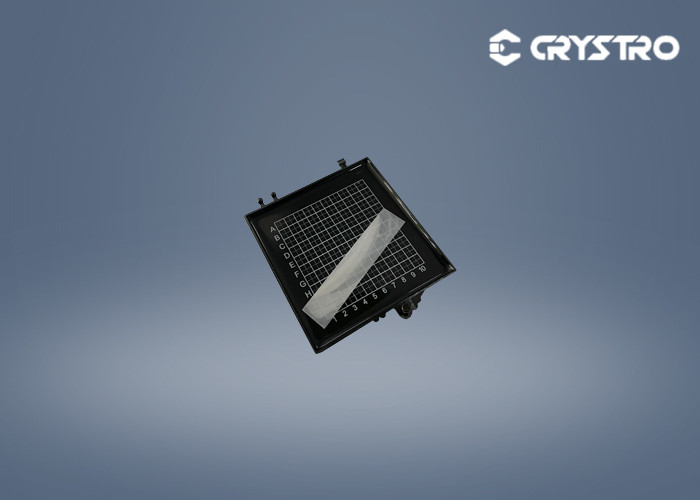

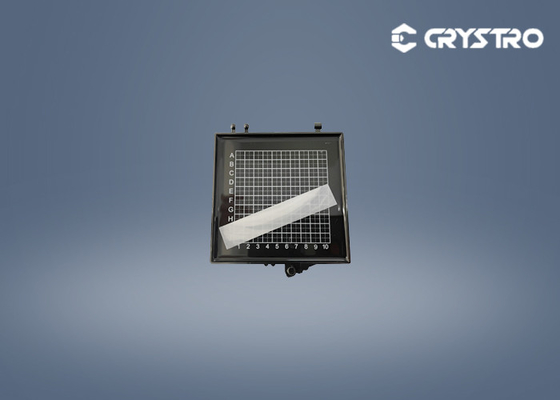

Lithium niobate (LN) crystal is a multifunctional crystal with excellent piezoelectric effect, electro-optic effect, acousto-optic effect, nonlinear effect, and photorefractive effect. It is widely used in optical communications, information processing, integrated optical circuits, image storage, harmonic generation, frequency doubling devices, parametric oscillation, 1064nm laser frequency doubling, and quadruple frequency phase matching devices. Such as SAW filter, Q-switch, electro-optical dimmer, parametric oscillator, optical waveguide substrate. . The incorporation of MgO can effectively increase the damage resistance threshold of the crystal.
Specifications:
| Growth method | Czochralski |
| Crystal structure | Trigonal system |
| Transparency Range | 420-5200nm |
| Lattice constant | a=b=5.148Å c=13.863 Å |
| Melting point | 1250℃ |
| Curie temperature | 1142 ℃ |
| Density | 4.64 g/cm3 |
| Hardness | 5 Mohs |
| Refractive index | No=2.286 ne=2.203 (632.8nm) |
