High Optical Damage Threshold LiTaO3 Wafers For SAW Surface Acoustic Wave Devices

High Optical Damage Threshold LiTaO3 Wafers For SAW  Surface Acoustic Wave Devices

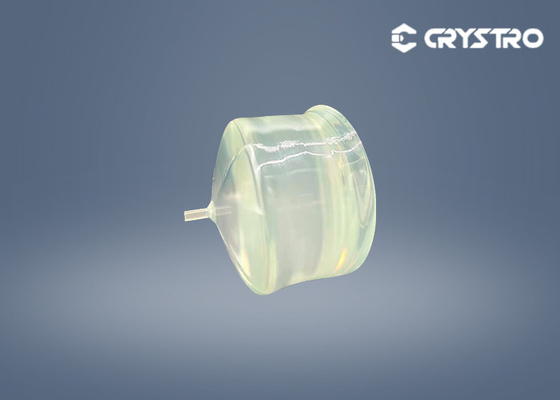

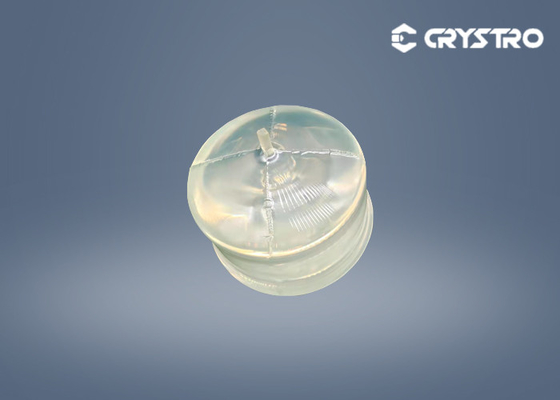

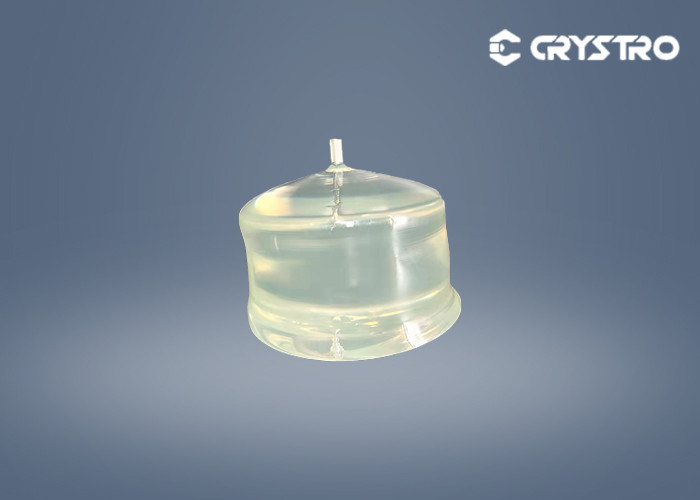

High Optical Damage Threshold LiTaO3 Wafers For SAW  Surface Acoustic Wave Devices High Optical Damage Threshold LiTaO3 Wafers For SAW  Surface Acoustic Wave Devices High Optical Damage Threshold LiTaO3 Wafers For SAW  Surface Acoustic Wave Devices

Large Image :  High Optical Damage Threshold LiTaO3 Wafers For SAW Surface Acoustic Wave Devices

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Chemical Formula: LiTaO₃ Growth Method: Czochralski
Crystal Structure: Trigonal Density: 7.45g/cm3
Curie Temperature: 605℃ Hardness: 5.5
Melting Point: 1650℃ Cell Parameters: A=5.154Å,c=13.781Å
High Light:

SAW Devices LiTaO3 Wafers

,

Trigonal LiTaO3 Wafers

,

Trigonal Lithium Tantalate




High optical damage threshold LiTaO3 Wafers For SAW Devices



Introduction:



Lithium Tantalate is a multi-functional material, which exhibits excellent electronic, electro-optical, pyroelectric, and piezoelectric properties, well-suited for SAW filters, optical communication, holographic, SHG, laser application. Polished LT wafer is widely used in electronic communication devices such as resonators, filters, and transducers, especially used surface acoustic wave devices for its good electromechanical coupling, and stable temperature Coefficient.





Advantages:

  • High optical damage threshold
  • Wide transparency range
  • Wide application



Material LiTaO3 wafers
Curie Temp 603±2℃
Cutting Angle X/Y/Z/X112Y/Y36/Y42/Y48/etc
Diameter/size 2”/4”/6" LT wafer
Tol(±) <0.20 mm
Thickness 0.18 ~ 0.5mm or more
Primary Flat 22mm /32mm /42.5mm /57.5mm
LTV (5mmx5mm) <1µm
TTV <3µm
Bow -30<bow<30
Warp <40µm
PLTV(<0.5um) ≥95%(5mm*5mm)
Orientation Flat All available
Surface Type Single Side Polished /Double Sides Polished
Back Side Criteria General is 0.2-0.5µm or as customized
Edge Criteria R=0.2mm or Bullnose
Fe doped

Fe doped for saw grade LN< wafers



 Picture:

High Optical Damage Threshold LiTaO3 Wafers For SAW  Surface Acoustic Wave Devices 0
