| Material: | Fe:LiTaO₃ | Growth Method: | Czochralski |
|---|---|---|---|
| Hardness: | 5.5 | Density: | 7.45g/cm3 |
| Melting Point: | 1650℃ | Cell Parameters: | A=5.154Å,c=13.781Å |
| Crystal Structure: | Trigonal | Curie Temperature: | 605℃ |
| High Light: | FeLiTaO3 Piezoelectric Crystal,Lithium Tantalate LT Crystal,FeLiTaO3 LT Crystal |
||
FeLiTaO3 Crystal Piezoelectric Crystal Lithium Tantalate LT Crystal
Introduction:
Lithium tantalate is a colorless or light yellow crystal. It has the advantages of good mechanical, physical properties, and low cost, and has been widely used in the IT industry as nonlinear optical crystals, electro-optic crystals, piezoelectric crystals, and birefringent crystals. It is used as a Q-switch in laser technology, as a pyroelectric detector in infrared technology, and as a filter in the electronics industry.
Features:
Large electro-optic coefficient
| Material | LiTaO3 wafers(White or Black &Fe doped) | |
| Curie Temp | 603±2℃ | |
| Cutting Angle | X/Y/Z/X112Y/Y36/Y42/Y48/etc | |
| Diameter/size | 3”/4”/6" LT wafer | |
| Tol(±) | <0.20 mm | |
| Thickness | 0.18 ~ 0.5mm or more | |
| Primary Flat | 22mm /32mm /42.5mm /57.5mm | |
| LTV (5mmx5mm) | <1µm | |
| TTV | <3µm | |
| Bow | -30<bow<30 | |
| Warp | <40µm | |
| PLTV(<0.5um) | ≥95%(5mm*5mm) | |
| Orientation Flat | All available | |
| Surface Type | Single Side Polished /Double Sides Polished | |
| Back Side Criteria | General is 0.2-0.5µm or as customized | |
| Edge Criteria | R=0.2mm or Bullnose | |
| Fe doped |
Fe doped for saw grade LN< wafers |
|

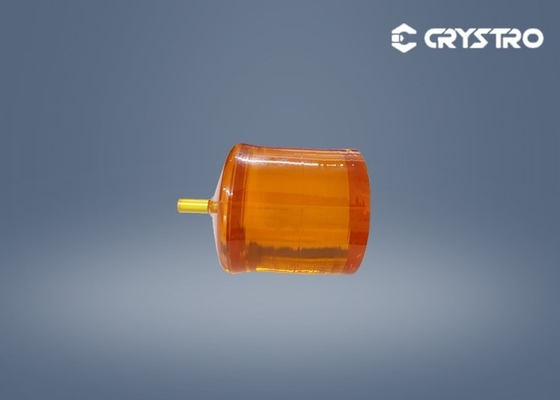

Picture:
