Single Crystal CaF2 Calcium Fluoride Substrate

Certification
China ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd. certification
China ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd. certification
I'm Online Chat Now

Single Crystal CaF2 Calcium Fluoride Substrate

Single Crystal CaF2 Calcium Fluoride Substrate
Single Crystal CaF2 Calcium Fluoride Substrate Single Crystal CaF2 Calcium Fluoride Substrate Single Crystal CaF2 Calcium Fluoride Substrate

Large Image :  Single Crystal CaF2 Calcium Fluoride Substrate

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRCAF-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable

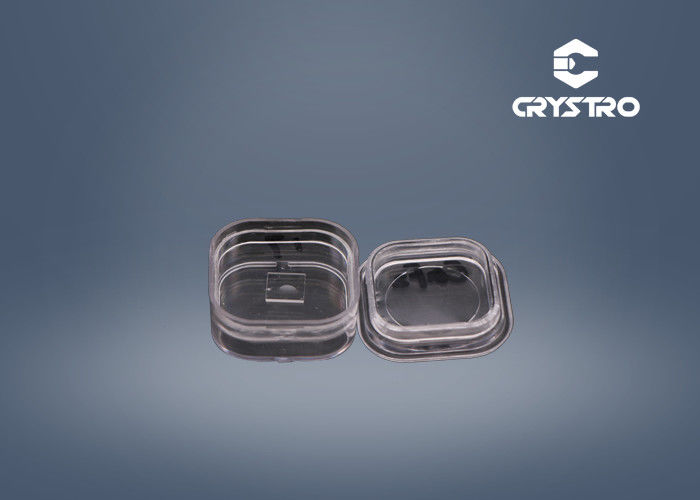

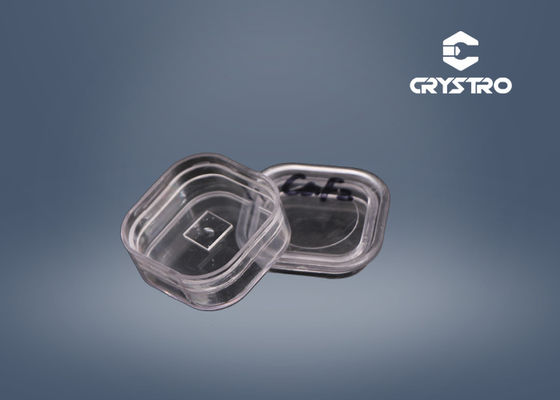

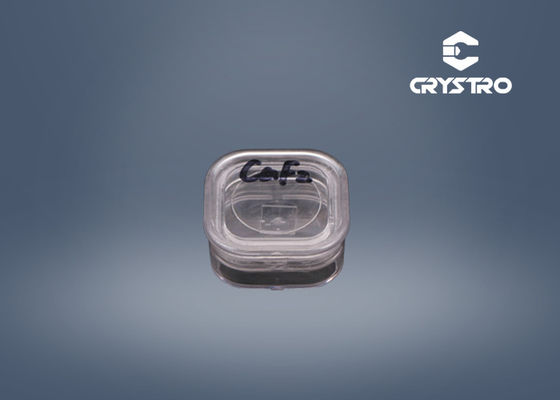

Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: CaF2 Crystal Substrate Chemical Formula: CaF2
Density: 3.18 G/cm3 Melting Point: 1418 ℃
Hardness: 4 ( Mohn) Crystal Structure: Cubic
Appearance: Transparent Lattice Parameters: A=5.462 Å
Thermal Expansion: 18.85 (x10-6/ ℃)
High Light:

Calcium Fluoride Substrate

,

CaF2 Substrate

,

Single Crystal CaF2 Substrate

Excellent Optical Properties CaF2 Calcium Fluoride Single Crystal Substrate

Introduction:


CaF2 is an excellent substrate for the epitaxial growth of HTS and many oxide thin films. It has also been used widely for special optical windows and as high quality sputtering target.





Technical parameters:



Crystal Structure Cubic Polishing Single side / double side
Density 3.18 g/cm3 Orientation  <100><111>
Hardness 4 Mohs Dimension 5*5*0.5 mm, 10*10*0.5 mm,20*20*0.5 mm
Lattice Parameters a = 5.462Å   5*5*1 mm,  10*10*1 mm,  20*20*1mm
Melting Point 1418 ℃ Customized Available



Product details:

Single Crystal CaF2 Calcium Fluoride Substrate 0
