TGG Terbium Gallium Garnet

TGG Terbium Gallium Garnet
TGG Terbium Gallium Garnet TGG Terbium Gallium Garnet TGG Terbium Gallium Garnet TGG Terbium Gallium Garnet

Large Image :  TGG Terbium Gallium Garnet

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRTGG-4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Name: Terbium Gallium Garnet Chemical Formula: TB3Ga5O12
Growth Method: Czochralski Crystal Structure: Cubic
Density: 7.13g/cm3 Size: D4*15 Mm
Mohs Hardness: 8.0 Melting Point: 1725℃
Refractive Index: 1.954 At 1064nm Lattic Parameter: A=12.355Å
High Light:

4*15 mm TGG Crystal Rods

,

4*15 mm TGG Optical Crystals

,

TGG Terbium Gallium Garnet

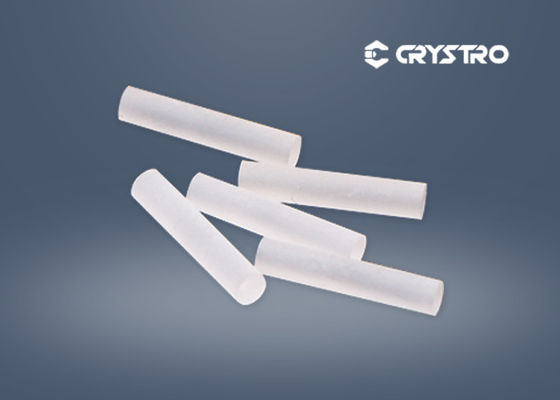

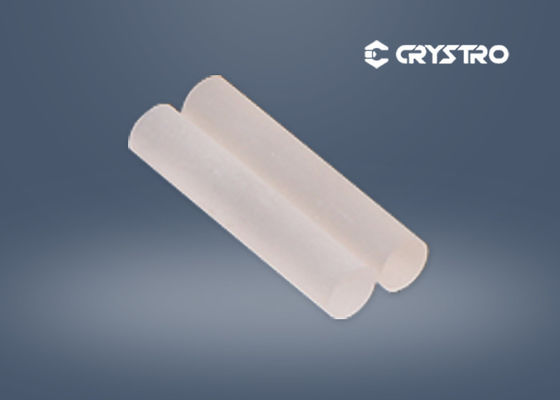

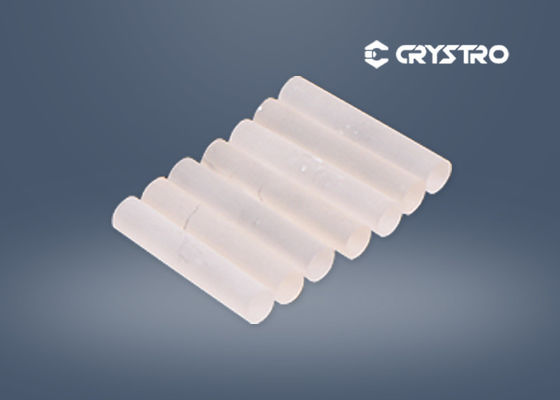

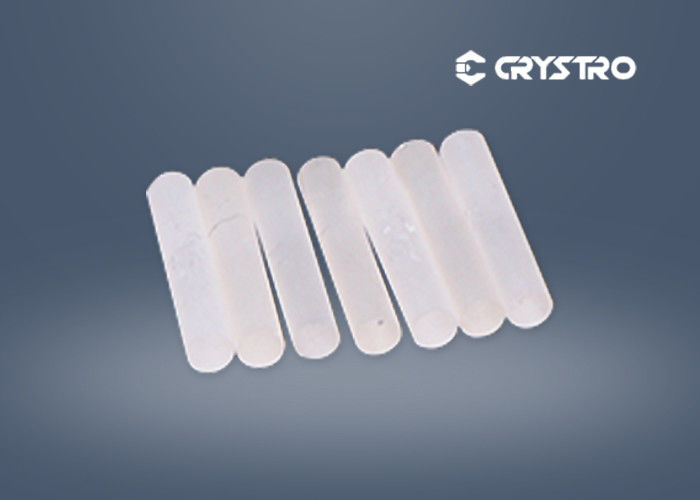

Dia 4*15 mm TGG (Terbium Gallium Garnet ) Crystal Rods optical crystals for Free Space Isolator

Introduction :

Terbium Gallium Garnet (TGG) is a kind of synthetic garnet ,an magneto-optical crystal with a high level of thermal conductivity for Faraday rotators and isolators.It can be used in optical isolators for laser systems, in optical circulators for fiber optic systems, in optical modulators, and in current and magnetic field sensors.



Basic Properties :



Chemical Formula TB3Ga5O12
Lattic Parameter a=12.355Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm









Main Features :

  • Large Size Boule Diameter: up to 4”
  • Extinction Ratio Typical: >35 dB High Grade: >40 dB
  • Verdet Constant 40 rad/T/m at 1064 nm
  • Refractive Index 1.95 at 1064 nm

Crystro TGG rods specification :

We can offer customize TGG crystal sizes upon your request.



Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--100 mm in diameter
