Neodymium Doped Yttrium Aluminum Garnet

Yttrium Aluminum Garnet Solid State Laser Nd YAG Crystal

Name: Yttrium Aluminum Garnet Solid State Laser Nd YAG Crystal
Brand: Crystro
SKU: CRNDYAG-2
Rating: 4.8 (182 reviews)

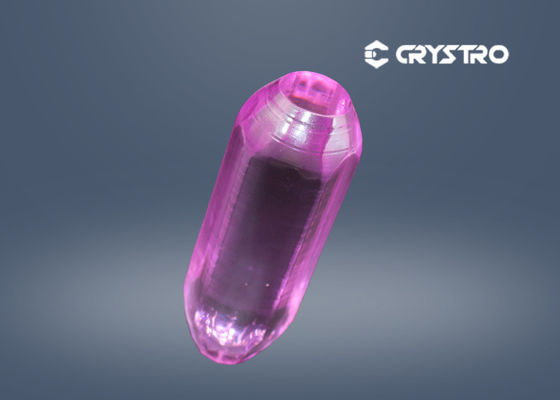

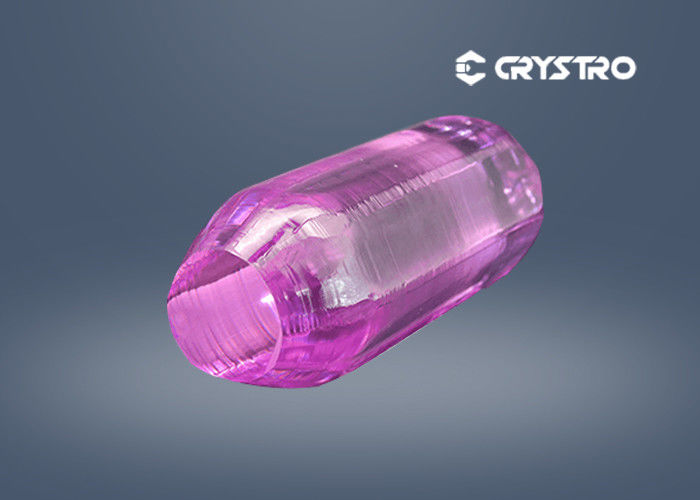

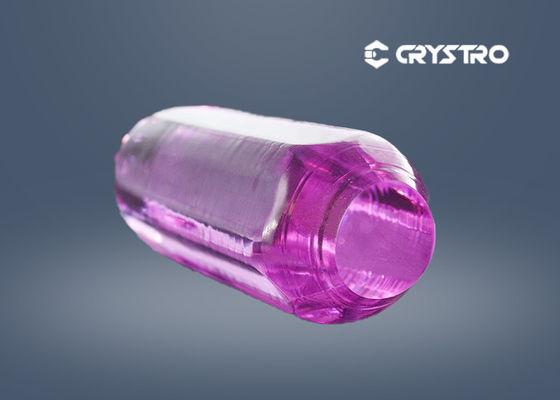

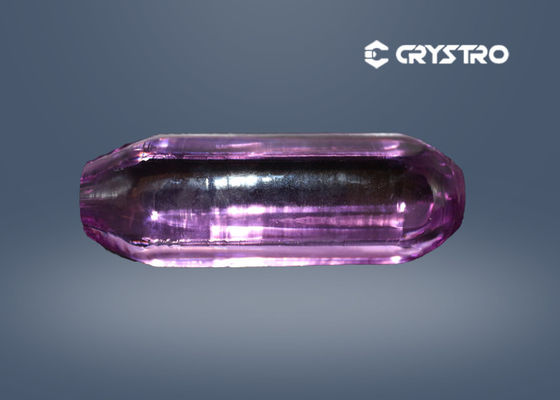

Large Image : Yttrium Aluminum Garnet Solid State Laser Nd YAG Crystal

Product Details:

Place of Origin:	China
Brand Name:	Crystro
Certification:	SGS
Model Number:	CRNDYAG-2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Transparent clean box
Delivery Time:	3-4 weeks
Payment Terms:	T/T, Western Union, MoneyGramm,Paypal
Supply Ability:	100 pcs per week

Contact Now

Detailed Product Description

Name:	Neodymium-doped Yttrium Aluminum Garnet (Nd:YAG)	Chemical Formula:	Nd:Y3Al5O12
Growth Method:	Czochralski	Density:	4.5g/cm3
Mohs Hardness:	8.5	Melting Point:	1970℃
Lattic Parameter:	A=12.01Å	Refractive Index:	1.82
Crystal Structure:	Cubic – La3d	Poisson Ratio:	0.25
High Light:	Nd YAG Solid State Laser Materials , 4.5g/cm3 Nd YAG Crystal , Nd YAG Yttrium Aluminum Garnet

Solid-state Laser Materials Nd:YAG (Neodymium Doped Yttrium Aluminum Garnet) Laser Crystals

Introduction :

Neodymium Doped Yttrium Aluminum Garnet – Nd:YAG laser crystals remains to be the most popular material for solid-state laser manufacturing. Good fluorescence lifetime, thermal conductivity and robust nature make Nd:YAG laser crystals suitable for high power continuous wave, high intensity Q-switched and single mode operation.

Material Properties :

Chemical Formula	Nd:Y₃Al₅O₁₂
Lattic Parameter	a=12.01Å
Growth Method	Czochralski
Density	4.5g/cm³
Mohs Hardness	8.5
Melting Point	1970℃
Refractive Index	1.82
Extinction Ratio	25 dB
Poisson Ratio	0.25

Main Advantages :

High gain
Low threshold
High efficiency
Low loss at 1064nm
High Optical quality
Good thermal conductivity and shock characteristics
Applicable to many laser working modes(continuous ,pulse ,Q-switch ,mode lock)

Crystro offers :

Dimention	Diameter from 3 to 40mm
Nd Dopant level	From 0.3-1.5 atm%
Wave Front Distortion	1/8 wave@632
Diameter Tolerance	±0.05mm
Length Tolerance	±0.5mm
Chamfer	0.10mm@45º
Flatness	<1/10 wave at 633nm
Parallelism	< 10 arc Seconds
Perpendicularity	< 15 arc min
Surface Quality	10/5 Scratch/Dig
Clear Apereture	>90%
Damage Threshold	>500MW/cm²
